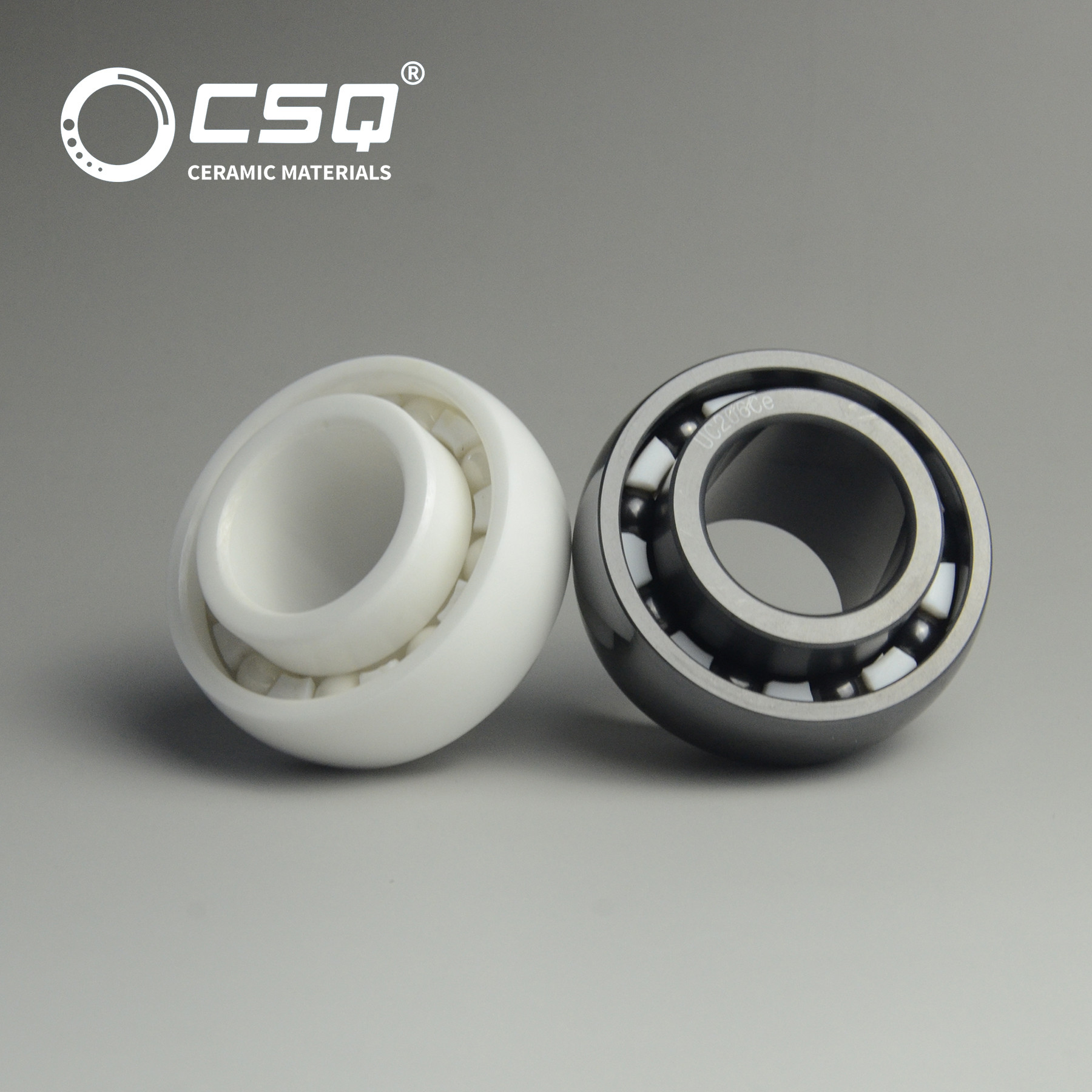

SSiC Silicon Carbide Ball Bearings Ceramic Insert Bearing UC200

  • SSiC Silicon Carbide Ball Bearings Ceramic Insert Bearing UC200
  • SSiC Silicon Carbide Ball Bearings Ceramic Insert Bearing UC200
Place of Origin China
Brand Name CSQ
Model Number UC200 series
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time Negotiable
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name SSiC Ceramic Insert Bearings Model UC200 Series
Race Material SSiC (Silicon Carbide) Ball Material SSiC (Silicon Carbide)
Cage Material Peek//PFA MOQ 50 Pieces
Pacage Foam+cartom Box Delivery Time Negotiable
Highlight

CSQ SSiC Silicon Carbide Ball Bearings

,

Ceramic Insert Bearings UC200

,

CSQ uc200 bearing
Leave a Message
Product Description



SSiC Ceramic Insert Bearings Of Customized Size



Description of SSiC Ceramic Insert Bearings:



SSiC races and balls: Are made of highly purified, sub-micron silicon carbide material. The atmospheric pressure solid phase sintering method at a high temperature of 2250°C are used to produce SSiC (Sintering SiC), so the free silicon and free carbon in the products are close to the theoretical values and can resist corrosion by hydrofluoric acid, which is the most excellent ceramic material with the best corrosion resistance among the known materials.



Performance advantages of SSiC all ceramic bearings:



With a density and coefficient of linear expansion close to that of silicon nitride ceramic materials, high hardness (2800 HV5), wear resistance, resistance to various strong acids, strong alkalis, salt corrosion, high temperature resistance. SSiC all ceramic bearings are preferred structure for the petroleum, chemical, semiconductor, food machinery, pharmaceutical industry, etc., and are the most widely used ceramic bearings.



Reference data of Ceramic Insert Bearings with adapting thread



Bearings model

Form size

d (mm)

Form size

D (mm)

Form size

B (mm)

Load
Cr (N)

Load

Cor (N)

Max.Speed

Grease (rpm)

Max. Speed

Oil (rpm)
UC201CE 12 29 47 12.7 18.3 4.5 M6×0.75
UC202CE 15 29 47 12.7 18.3 4.5 M6×0.75
UC203CE 17 29 47 12.7 18.3 4.5 M6×0.75
UC204CE 20 29 47 12.7 18.3 4.5 M6×0.75
UC205CE 25 34 52 14.3 19.7 5 M6×0.75
UC206CE 30 40.5 62 15.9 22. 5 M6×0.75
UC207CE 35 48 72 17.5 25.4 6 M8×1.0
UC208CE 40 53 80 19 30.2 8 M8×1.0
UC209CE 45 57.3 85 19 30.2 8 M8×1.0
UC210CE 50 63 90 19 32.6 9 M10×1.25
UC211CE 55 70 100 22.2 33.4 9 M10×1.25
UC212CE 60 77 110 25.4 39.7 10 M10×1.25
UC213CE 65 82.1 120 25.4 39.7 10 M10×1.25
UC214CE 70 87 125 30.2 44.4 12 M12×1.5
UC215CE 75 91.5 130 33.3 44.5 14 M12×1.5



SSiC Silicon Carbide Ball Bearings Ceramic Insert Bearing UC200 0
