One Single Direction Ceramic Thrust Ball Bearing 51103 In Structure

  • One Single Direction Ceramic Thrust Ball Bearing 51103 In Structure
  • One Single Direction Ceramic Thrust Ball Bearing 51103 In Structure
Place of Origin China
Brand Name CSQ
Model Number 51103
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time 30 work days
Payment Terms T/T
Supply Ability 50 pcs in 30 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name SSiC Ball Bearings 51103 Category Ceramic Single Direction Thrust Ball Bearing
Material SSiC Races And Balls+ Cage Size 17(d)×30(D)×9(B) Mm
MOQ 50 Pieces Pacage Foam+cartom Box
Highlight

single direction thrust ball bearing

,

one direction ball thrust bearing

,

51103 thrust ball bearing
Leave a Message
Product Description

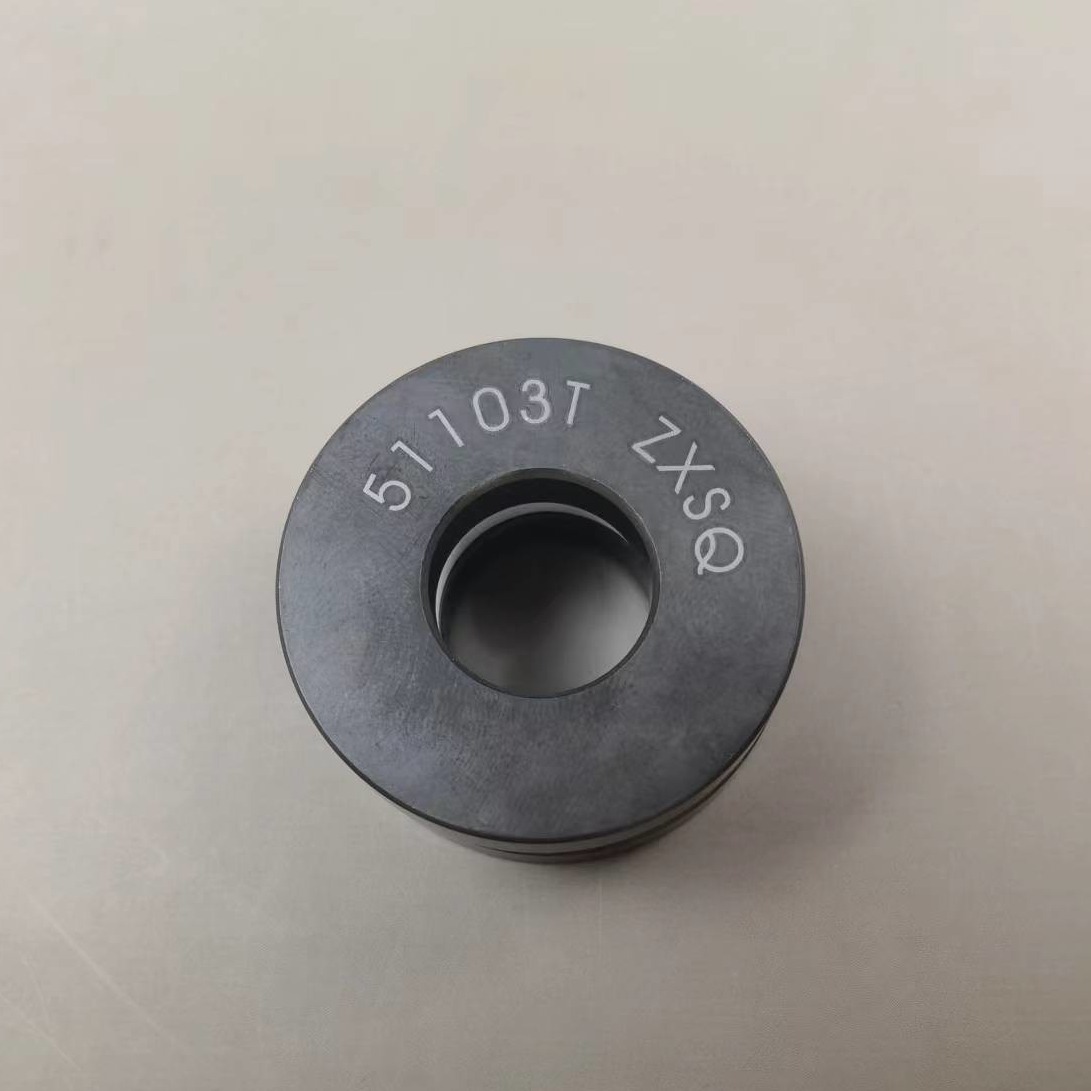

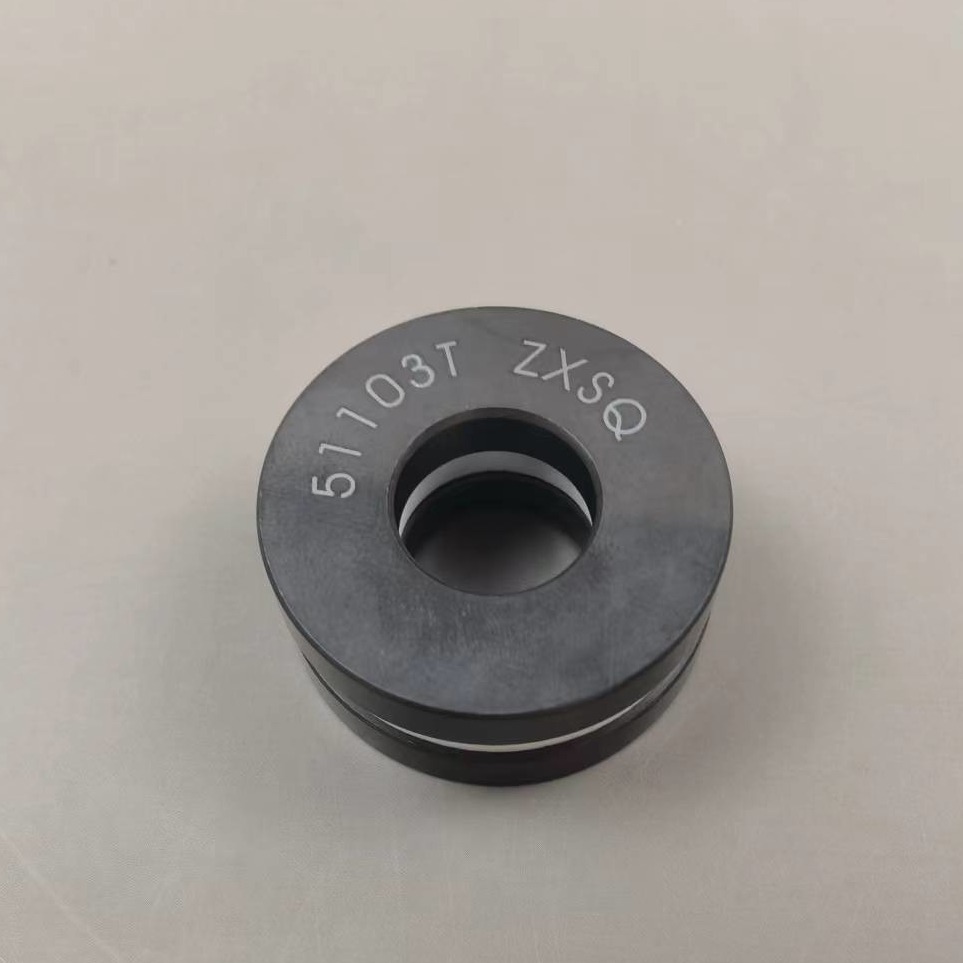

SSiC Ball Bearings 51103 In Structure Of Single Direction Thrust Bearing



Description of Ceramic Thrust Bearing 51103:



1. SSiC races and balls are made of highly purified, sub-micron silicon carbide material and are sintered by pressureless sintering method, so the free silicon and free carbon in the products are close to the theoretical values. And the silicon carbide material has many advantages,like Low density:3.15-3.18 g/cm3; High strength and high hardness: 2800 HV5; Low thermal expansion : 4.0 (10-6/℃); High thermal conductivity:120 W/m°K; High elastic modulus: 410GPa;Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)



2. cage: has excellent resistance and high temp resistance, are resistant to molten metal sodium and liquid fluorine, all kinds of acid and alkali and organic solvent, can work in -180℃ to +250℃ temperature for a long time.



Performance of Ceramic Thrust Bearing 51103:



Ceramic Bearings Dimension Reference
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
  Cr(N) Cor(N) Grease (rpm) Oil (rpm)
51103CE 8640 15470 6000 9100



Application of Ceramic Thrust Bearing 51103:



SSiC Ceramic Bearings are suitable for the petroleum, chemical, semiconductor, food machinery, pharmaceutical industry, etc.,.



One Single Direction Ceramic Thrust Ball Bearing 51103 In Structure 0
