ABEC 7 Silicon Carbide Ball Bearings 7004 20x42x12mm

  • ABEC 7 Silicon Carbide Ball Bearings 7004 20x42x12mm
  • ABEC 7 Silicon Carbide Ball Bearings 7004 20x42x12mm
Place of Origin China
Brand Name CSQ
Model Number 7004
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Plastik bag+carton box
Delivery Time 30 work days
Payment Terms T/T
Supply Ability 50 pcs in 30 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Full Silicon Carbide Balls Ceramic Bearing 7004 Category Silicon Carbide Ceramic Bearing
Material Silicon Carbide Races And Balls Precision P6/ABEC3 To P4/ABEC7
Designation 7004: Ø20× Ø42×12mm Seal Structure Open
Use Petroleum, Chemical Industry MOQ 50 Pieces
Highlight

ABEC7 Silicon Carbide Ball Bearings

,

abec ceramic bearings

,

Carbide Ball Bearings 20x42x12mm
Leave a Message
Product Description

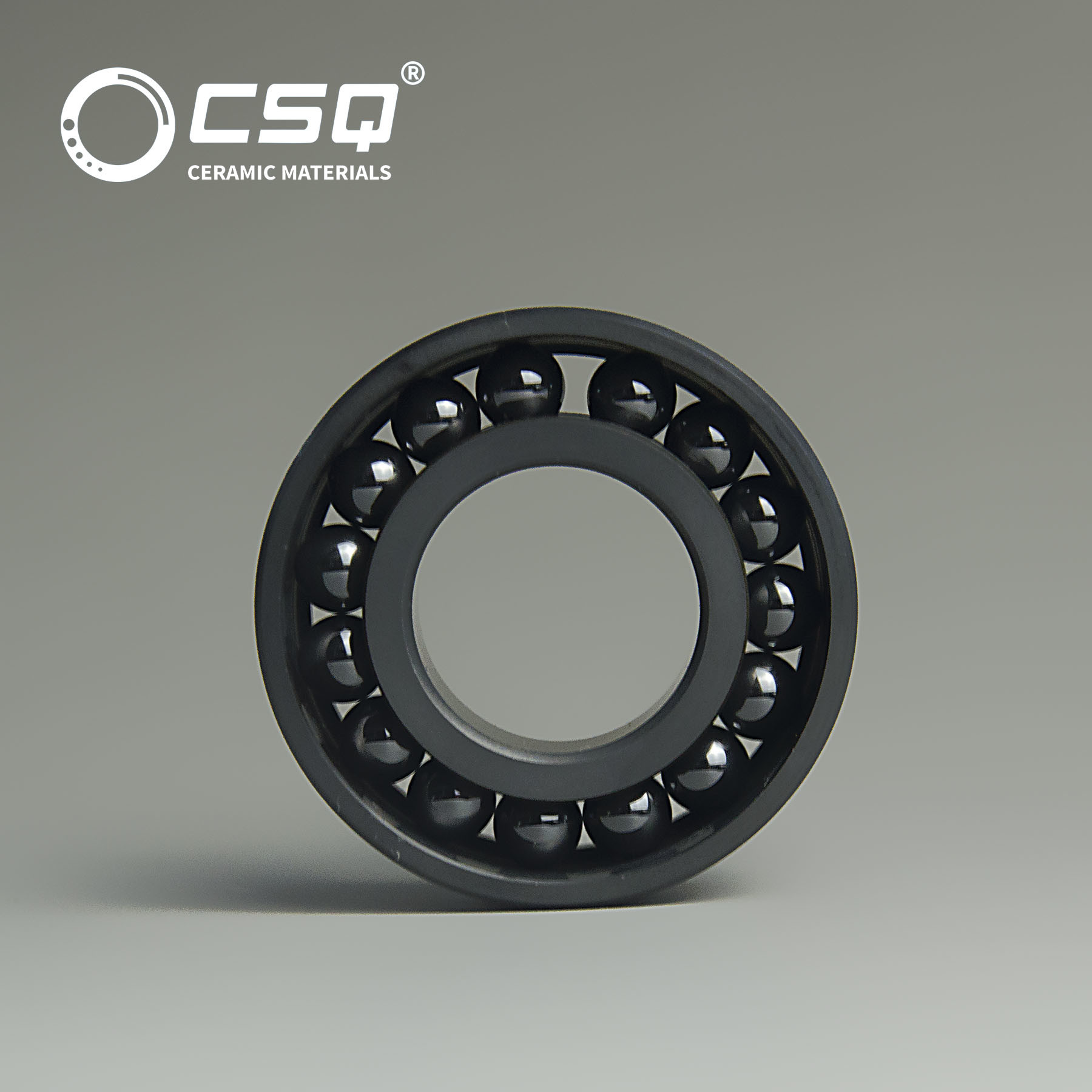

Full Silicon Carbide Balls Ceramic Bearing 7004 With High Precision



SSiC races and balls: Are made of highly purified, sub-micron silicon carbide material, can resist corrosion by hydrofluoric acid, which is the most excellent ceramic material with the best corrosion resistance among the known materials.



Performance advantages of SSiC Bearing (Pressureless sintered silicon carbide):



With a density and coefficient of linear expansion close to that of silicon nitride ceramic materials, high hardness, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion, high temperature resistance. SSiC all ceramic bearings are preferred structure for the petroleum, chemical, semiconductor, food machinery, pharmaceutical industry, etc., and are the most widely used ceramic bearings.



►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)

























ABEC 7 Silicon Carbide Ball Bearings 7004 20x42x12mm 0
