6000 Ceramic Bearing Deep Groove 6001 6002 6005

  • 6000 Ceramic Bearing Deep Groove 6001 6002 6005
  • 6000 Ceramic Bearing Deep Groove 6001 6002 6005
Place of Origin China
Brand Name CSQ
Model Number 6000/6200/6300 series
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time Negotiable
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name SSiC Ceramic Deep Groove Balls Bearings Model 6000/6200/6300 Series
Race And Ball In Material Of SSiC (Silicon Carbide) Cage Material Peek//Nylon Or Other Material You Need
Seals Material Open/Stainless Steel/rubber//Peek Precision P6/ABEC3 To P4/ABEC7
Highlight

6001 ceramic bearing

,

6002 ceramic bearing

,

6005 ceramic bearing
Leave a Message
Product Description

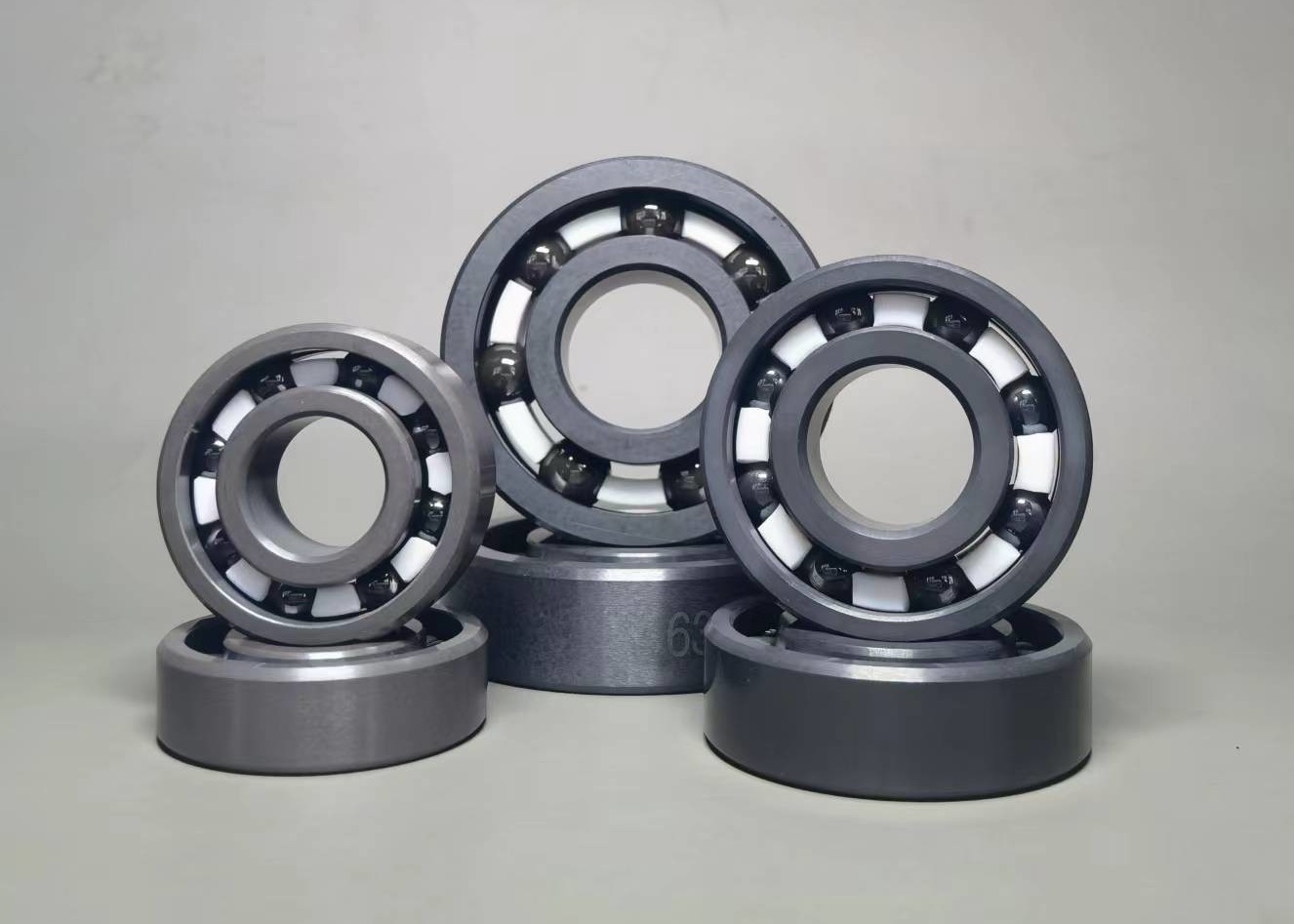

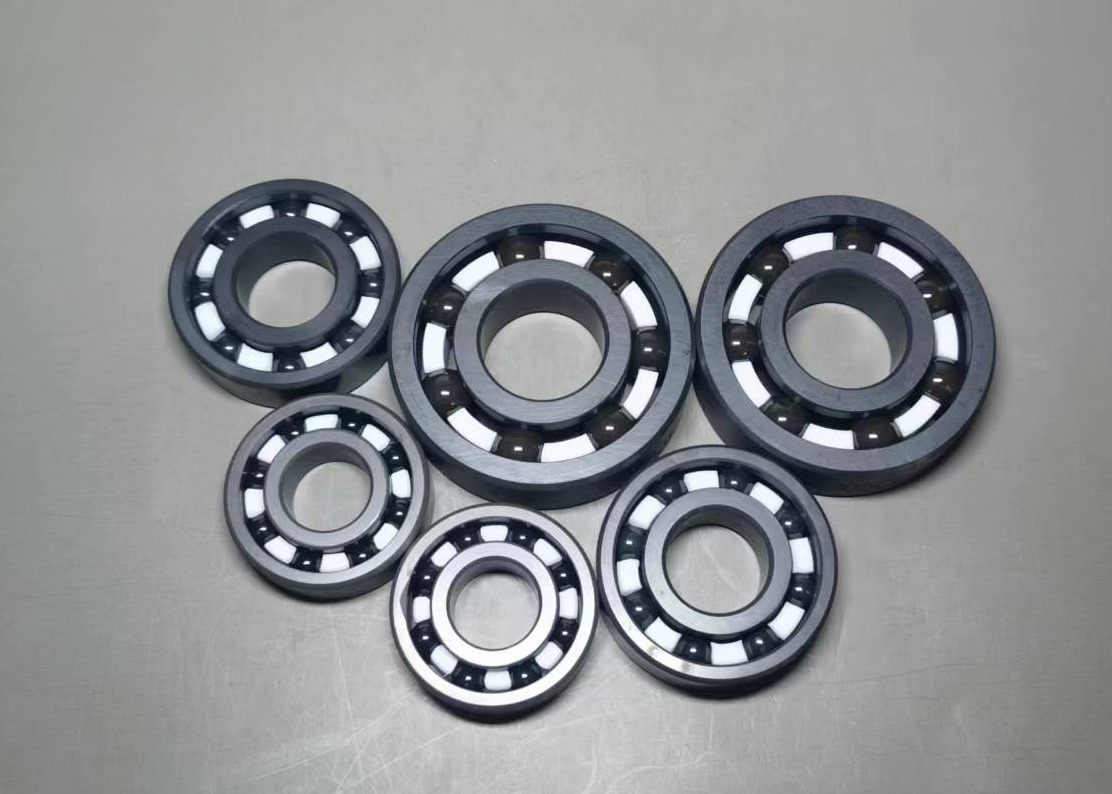

SSiC Ceramic Deep Groove Balls Bearings With High Precision



Description of SSiC Ceramic Deep Groove Bearings:



SSiC races and balls: Are made of highly purified, sub-micron silicon carbide material. The atmospheric pressure solid phase sintering method at a high temperature of 2250°C are used to produce SSiC (Sintering SiC), so the free silicon and free carbon in the products are close to the theoretical values and can resist corrosion by hydrofluoric acid, which is the most excellent ceramic material with the best corrosion resistance among the known materials.



The material of cage and seals can be chosen among PEEK, and other material you need, our main material are PEEK and .

Peek and material both have excellent corrosion resistance and high temp resistance, can work for a long time in many kinds of acid and alkali enviroments, which are ideal material for cage and seal of ceramic bearings.



Key properties of our pressureless sintered silicon carbide:



♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)

























Reference data of Ceramic Deep Groove Bearings:



Bearings model

Form size

d (mm)

Form size

D (mm)

Form size

B (mm)

Load
Cr (N)

Load

Cor (N)

Max.Speed

Grease (rpm)

Max. Speed

Oil (rpm)
6000CE 10 26 8 4100 1960 37700 44200
6200CE 10 30 9 4590 2390 32500 39000
6300CE 10 35 11 7380 3500 29900 35100
6001CE 12 28 8 4590 2390 33800 39000
6201CE 12 32 10 5490 2750 28600 33800
6301CE 12 37 12 8730 4200 26000 31200
6002CE 15 32 9 5040 2840 28600 33800
6202CE 15 35 11 6980 3600 24700 29900
6302CE 15 42 13 10260 5450 22100 27300
6003CE 17 35 10 6120 3350 26000 31200
6203CE 17 40 12 8640 4600 23400 27300
6303CE 17 47 14 12150 6550 20800 24700
6004CE 20 42 12 8460 5050 23400 27300
6204CE 20 47 14 11520 6650 20800 23400
6304CE 20 52 15 14310 7900 18200 22100
6005CE 25 47 12 9090 5850 19500 23400
6205CE 25 52 15 12600 7850 16900 19500
6305CE 25 62 17 19080 10900 15600 18200
6006CE 30 55 13 11880 8300 16900 19500
6206CE 30 62 16 17550 11300 14300 16900
6306CE 30 72 19 24030 15000 13000 15600
6007CE 35 62 14 14400 10300 15600 18200
6207CE 35 72 17 23130 15300 12740 14300
6307CE 35 80 21 30150 19100 11440 13000
6008CE 40 68 15 15120 11500 13000 15600
6208CE 40 80 18 26190 17800 11310 3000
6308CE 40 90 23 36450 24000 10140 11960
6009CE 45 75 16 18900 15100 11960 14300
6209CE 45 85 19 29250 20400 10140 11960
6309CE 45 100 25 47700 32000 9100 10660
6010CE 50 80 16 19620 16600 10920 12740
6210CE 50 90 20 31500 23200 9230 10790
6310CE 50 110 27 55800 38500 8320 9750
6011CE 55 90 18 25470 21200 10010 11700
6211CE 55 100 21 39150 29200 8320 9880
6311CE 55 120 29 64350 45000 7540 8840
6012CE 60 95 18 26550 23200 9100 10790
6212CE 60 110 22 47250 36000 7800 9100
6312CE 60 130 31 73800 52000 7020 8190
6013CE 65 100 18 27450 25200 8450 10010
6213CE 65 120 23 51750 40000 7150 8450
6313CE 65 140 33 83250 60000 6370 7540
6014CE 70 110 20 34200 31000 7930 9230
6214CE 70 125 24 55800 44000 6630 7800
6314CE 70 150 35 93600 68000 5980 7020
6015CE 75 115 20 35550 33500 7410 8710
6215CE 75 130 25 59400 49500 6240 7280
6315CE 75 160 37 101700 77000 5590 6500
6016CE 80 125 20 42750 40000 6890 8060
6216CE 80 140 26 65250 53000 5850 6890
6316CE 80 170 39 110700 86500 5200 6110
6017CE 85 130 22 44550 43000 6500 7670
6217CE 85 150 28 75150 64000 5460 6500
6018CE 90 145 24 52200 49500 6115 7280
6218CE 90 160 30 86400 71500 5200 6115
6019CE 95 150 24 54450 54000 5850 6890
6219CE 95 170 32 98100 82000 4810 5720
6020CE 100 160 26 54000 54000 5460 6500
6220CE 100 180 34 109800 93000 4550 5460



6000 Ceramic Bearing Deep Groove 6001 6002 6005 0
