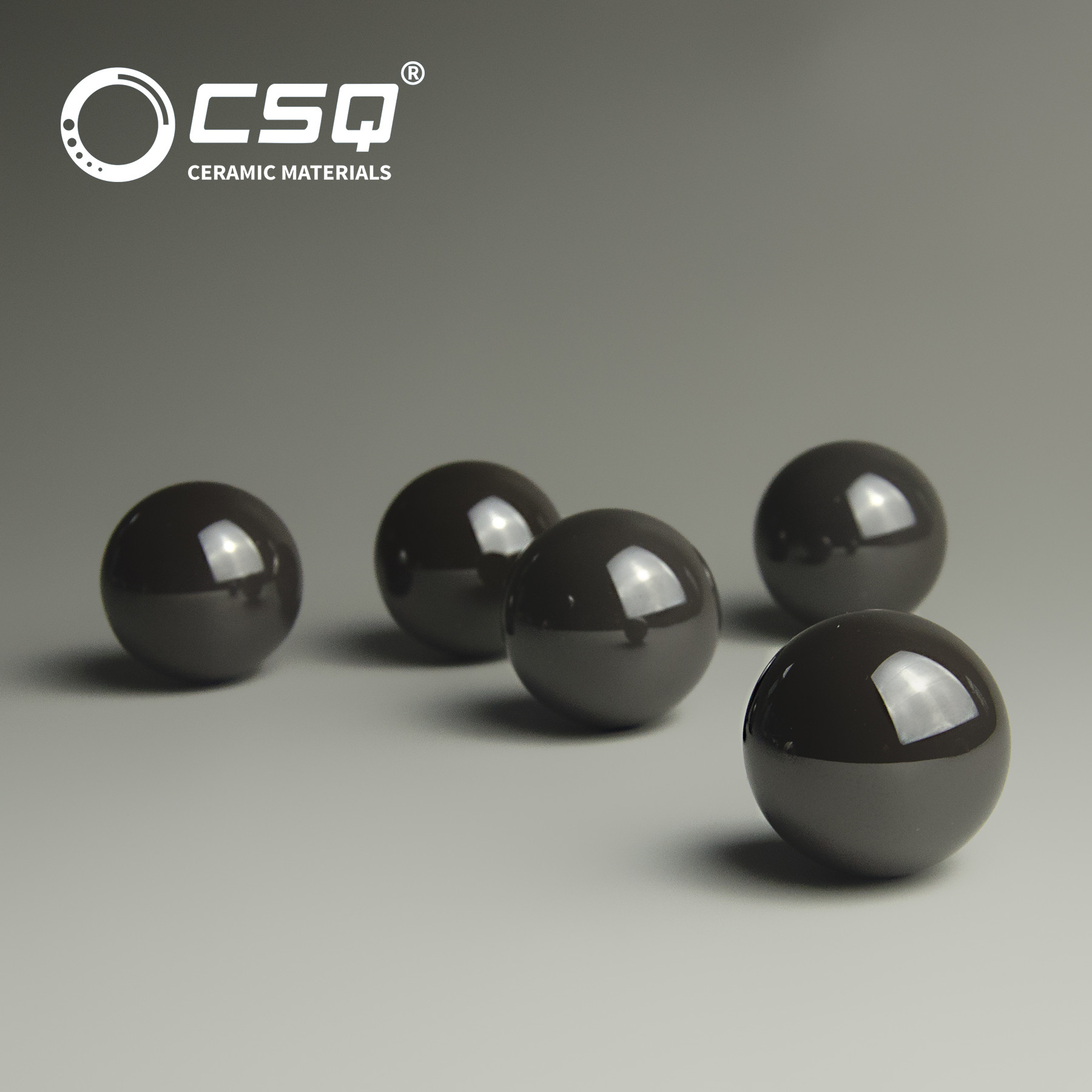

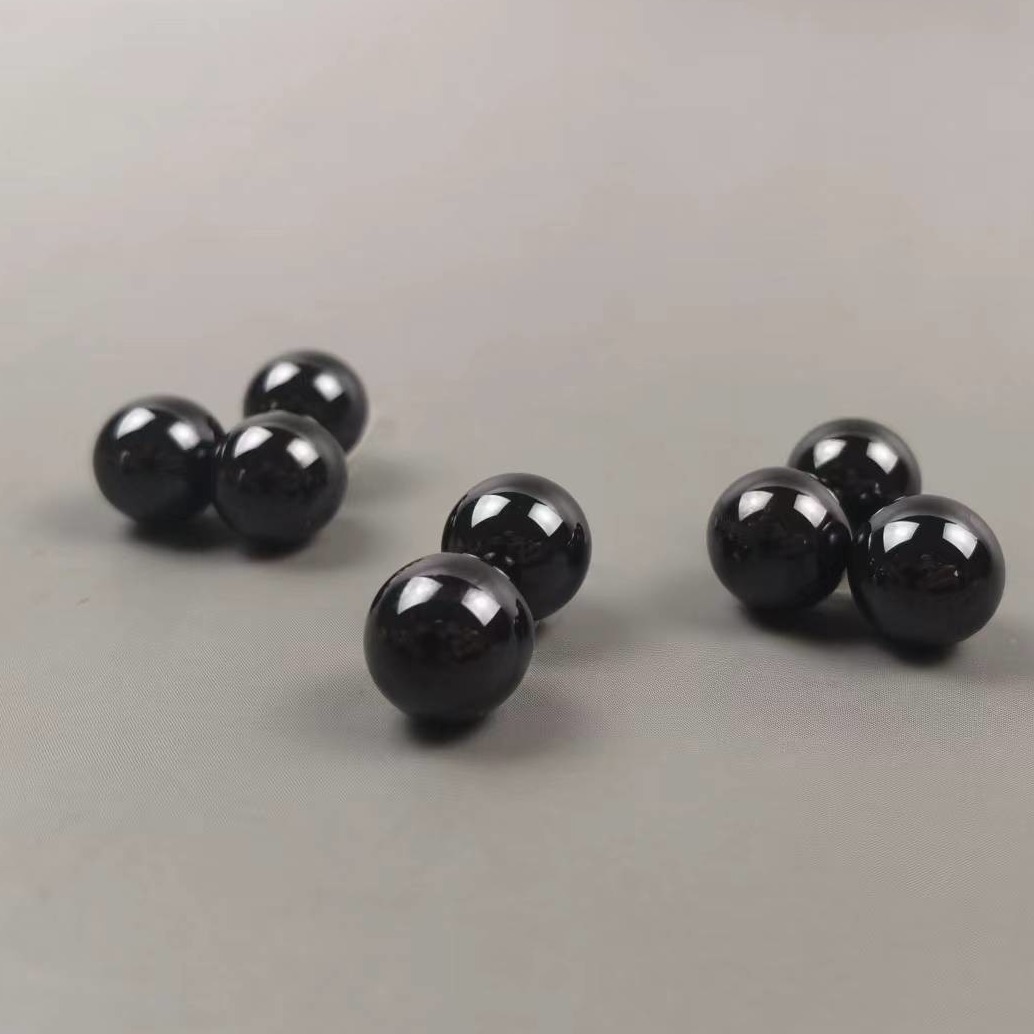

Silicon Nitride Ceramic Balls For Bearings 9.525mm HIP Si3N4

  • Silicon Nitride Ceramic Balls For Bearings 9.525mm HIP Si3N4
  • Silicon Nitride Ceramic Balls For Bearings 9.525mm HIP Si3N4
  • Silicon Nitride Ceramic Balls For Bearings 9.525mm HIP Si3N4
Place of Origin China
Brand Name CSQ
Model Number Non
Minimum Order Quantity 10000 pieces
Price Negotiable
Packaging Details Plastik box+carton box
Delivery Time 20-30 work days
Payment Terms T/T
Supply Ability 10000 pieces in 20-30 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ø9.525mm HIP-Si3N4 Ball Material Hot Isostatic Pressure Sintered Silicon Nitride
Grade G5 Size Ø9.525mm
Technology Hot Isostatic Presssure Sintering Technology Use Bearing Ball
Suitable Model 6206/6304 Etc. Pacage Plastik Box+carton Box
Highlight

Silicon nitride ceramic balls for bearings

,

Silicon nitride ceramic balls 9.525mm

,

si3n4 ceramic ball
Leave a Message
Product Description



Ø9.525mm HIP-Si3N4 Ball With G5 Grade For Ceramic Ball Bearing



Description of Ø9.525mm HIP-Si3N4 Ball:



They are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and are sintered by HIP (Hot Isostatic Pressure) technology. So there are less pore in the blanks and the properties of silicon nitride balls are highly improved, which is key point to produce G5 Grade Si3N4 balls in batch. Our company has more than two production lines specializing in the production of high-precision silicon nitride balls in many sizes.



► Key properties of hot isostatic sintered silicon nitride
♦ Max temperature to 1000℃
♦ High strength over a wide temperature range
♦ High fracture toughness: 6.1 MPa-m1/2
♦ High hardness: 1580 HV5
♦ Outstanding wear resistance, both impingement and frictional modes
♦ Good thermal shock resistance
♦ Good chemical stability,resistance to acid and alkali corrosion
♦ Good electric insulation



Silicon Nitride Ceramic Balls For Bearings 9.525mm HIP Si3N4 0
