HIP Si3n4 Silicon Nitride Ceramic Balls G5 Grade 6.35mm

  • HIP Si3n4 Silicon Nitride Ceramic Balls G5 Grade 6.35mm
  • HIP Si3n4 Silicon Nitride Ceramic Balls G5 Grade 6.35mm
  • HIP Si3n4 Silicon Nitride Ceramic Balls G5 Grade 6.35mm
Place of Origin China
Brand Name CSQ
Model Number Non
Minimum Order Quantity 10000 pieces
Price Negotiable
Packaging Details Plastik box+carton box
Delivery Time 20-30 work days
Payment Terms T/T
Supply Ability 10000 pieces in 20-30 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ø6.35mm HIP-Si3N4 Ball Material Hot Isostatic Pressure Sintered Silicon Nitride
Grade G5 Size Ø6.35mm
Technology Hot Isostatic Pressure Sintering Technology Use Bearing Ball
Suitable Model 6004/6005 Etc. Pacage Plastik Box+carton Box
Highlight

CSQ HIP si3n4 silicon nitride ceramic balls

,

CSQ si3n4 silicon nitride ceramic balls G5

,

CSQ si3n4 ceramic balls
Leave a Message
Product Description

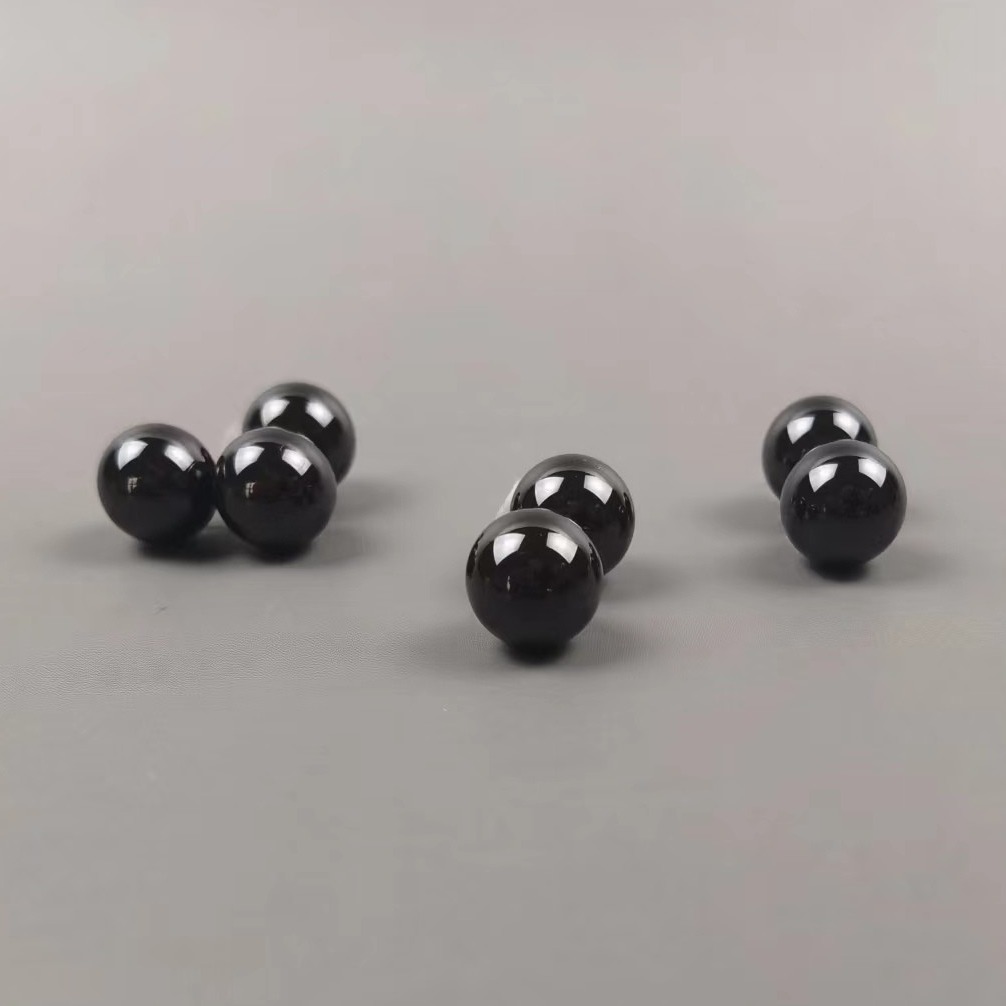

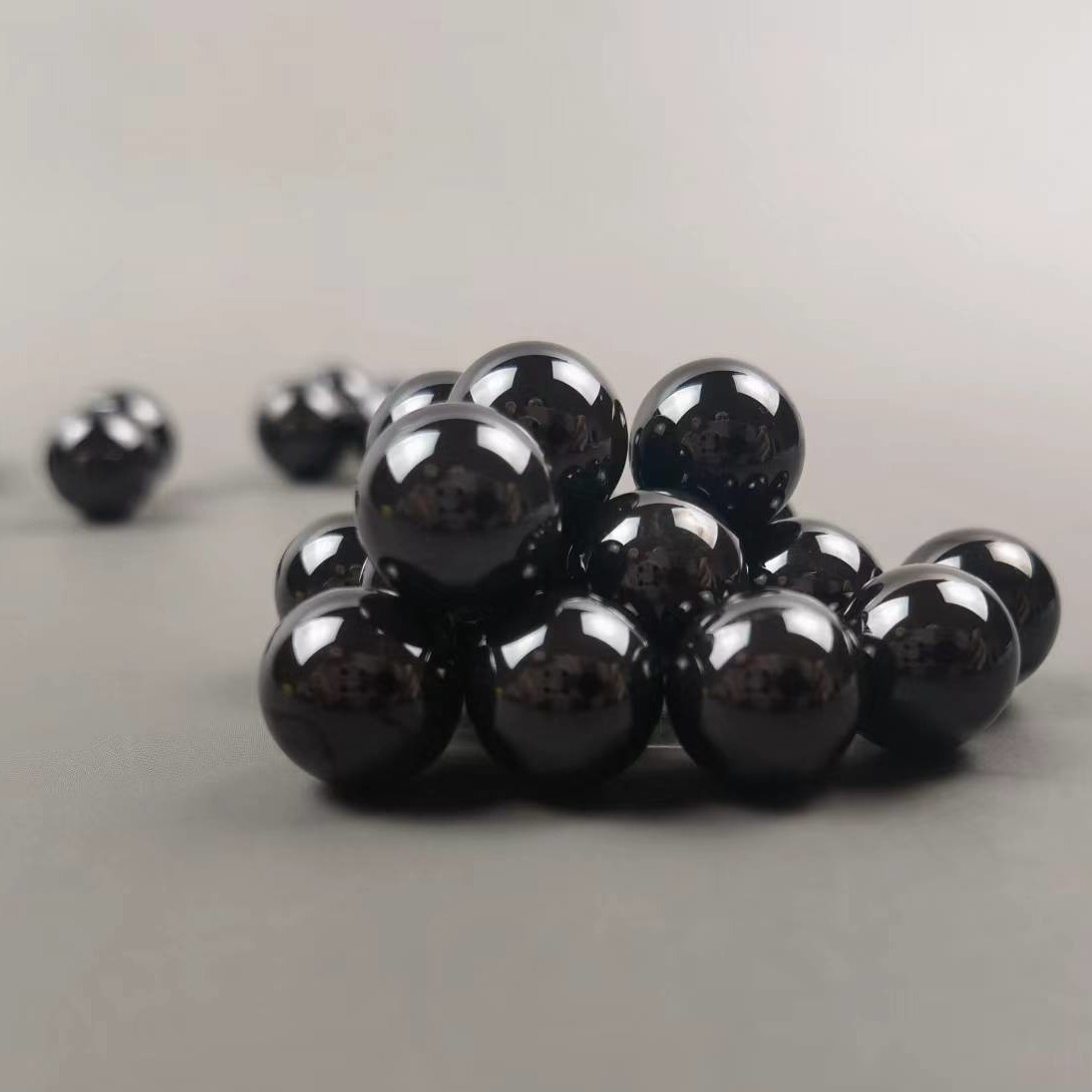

Ø6.35mm HIP-Si3N4 Ball With G5 Grade For Ceramic Ball Bearing



Description of Ø6.35mm HIP-Si3N4 Ball:



They are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and are sintered by GPS (Gas Pressure)  HIP (Hot Isostatic Pressure) technology. So the blanks are more closer and in that there are less pore, which is key point to make sure the finished silicon nitride balls can reach G5 grade. Our company has more than two production lines specializing in the production of high-precision GPS (Gas Pressure) and HIP (Hot Isostatic Pressure, mainly) sintered silicon nitride balls in many sizes. Silicon nitride is the preferred ball material for ultra-high speed and high precision ceramic bearings.



Ceramin material engineering properties



Mechanical Properties HIP-Si3N4 GPS-Si3N4
Density 3.27-3.29 g/cm3 3.22-3.27 g/cm3
Porosity 0% 0%
Fledural Strength 830 MPa 689 MPa
Elastic Modulus 310 GPa 310 GPa
Poisson's Ratio 0.27 0.24
Hardness 1580 HV5 1450 HV5
Fracture Toughness KIC 6.1 MPa.m1/2 5.7  MPa.m1/2
Max. Use Temperature 1000 ℃ 1000 ℃
Thermal conductivity 30 W/m° K 29 W/m° K



HIP Si3n4 Silicon Nitride Ceramic Balls G5 Grade 6.35mm 0
