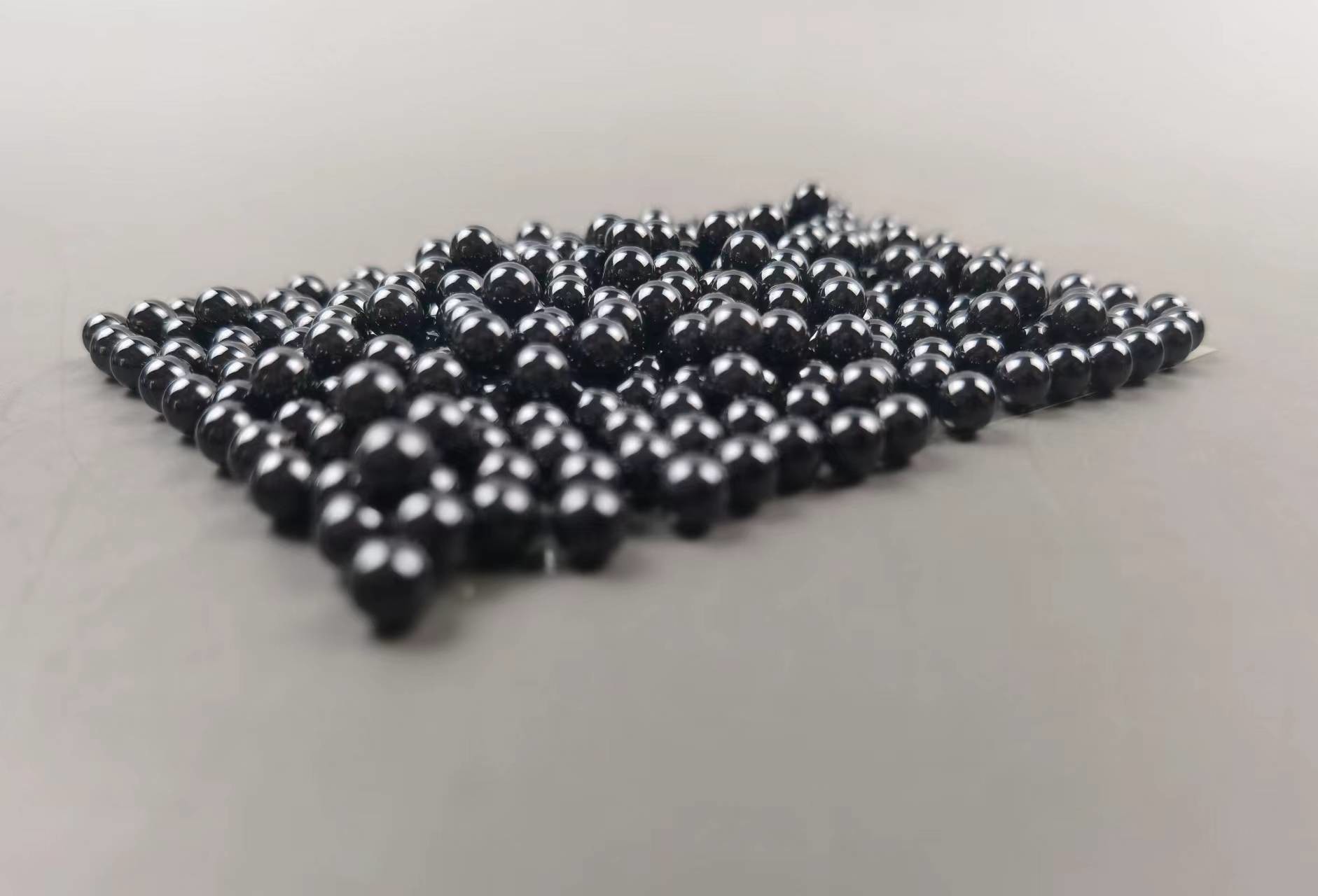

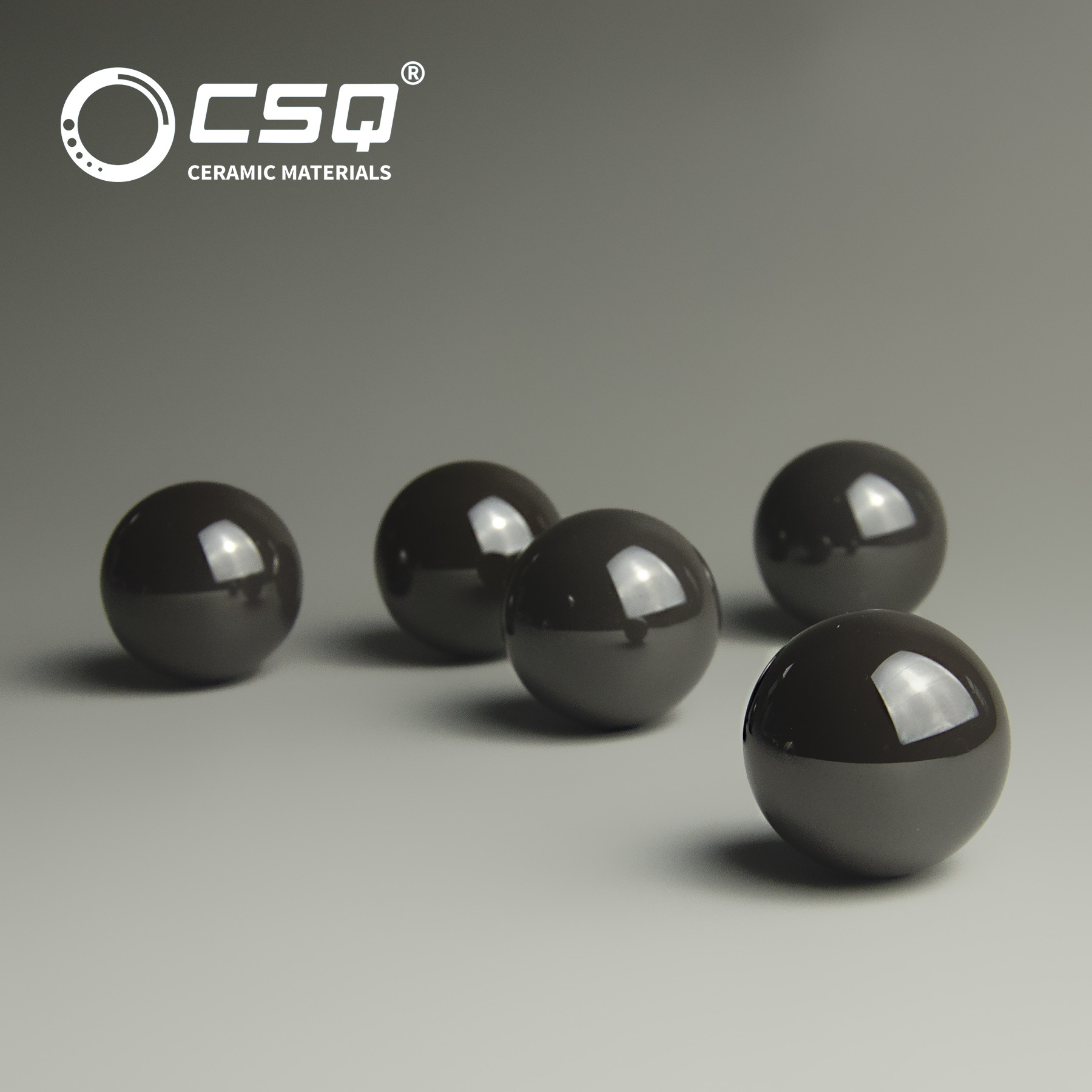

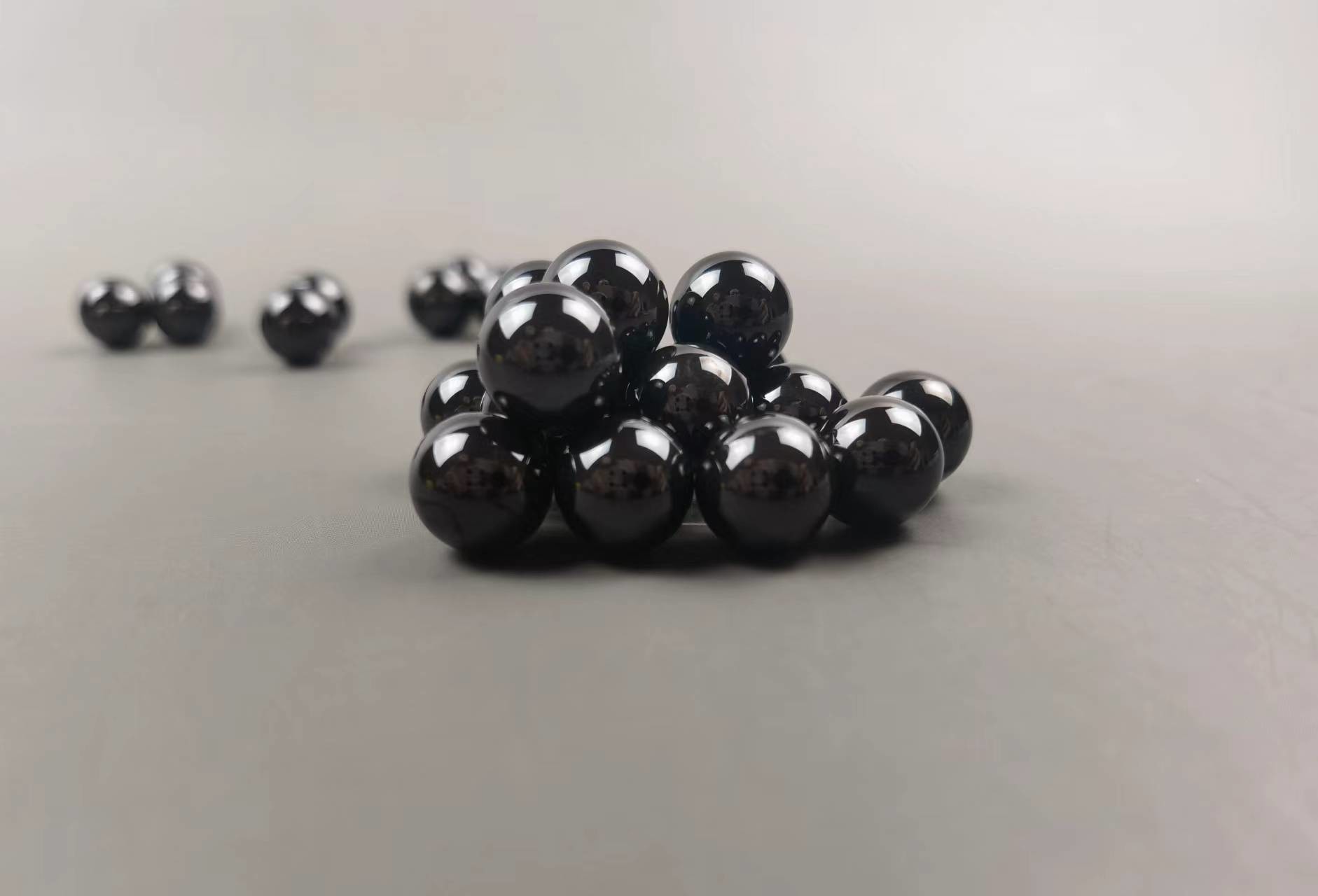

Ceramic Si3n4 Ceramic Ball 1mm 3.969mm 5mm

  • Ceramic Si3n4 Ceramic Ball 1mm 3.969mm 5mm
  • Ceramic Si3n4 Ceramic Ball 1mm 3.969mm 5mm
  • Ceramic Si3n4 Ceramic Ball 1mm 3.969mm 5mm
  • Ceramic Si3n4 Ceramic Ball 1mm 3.969mm 5mm
Place of Origin China
Brand Name CSQ
Model Number Non
Minimum Order Quantity 10000 pieces
Price Negotiable
Packaging Details Sealed packing in plastic bags+foam+carton box
Delivery Time 20-30 work days
Payment Terms T/T
Supply Ability 10000 pieces in 20-30 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ø3.969mm HIP-Si3N4 Ball Material Hot Isostatic Pressure Sintered Silicon Nitride
Grade G5 Size Ø3.969mm
Technology Hot Isostatic Pressure Sintering Technology Use Bearing Ball
Suitable Model 608/609/627/628/636/6810/6902/6903 Etc. Pacage Sealed Packing In Plastic Bags+carton Box
Highlight

si3n4 ceramic ball 1mm

,

Ceramic si3n4 ceramic ball

,

SILICON NITRIDE Si3N4 BALLS
Leave a Message
Product Description



Description of Ø3.969mm HIP-Si3N4 Ball:



Our silicon nitride balls are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and are processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology. Through that, the density of blanks is improved and porosity is declined, then through our professional grinding production, our silicon nitride balls can reach G5 grade, which are the best choice to be fitted in allhybrid ceramic bearings with high precision to improve the performance of bearings. At present, our company has more than two production lines specializing in the production of high-precision GPS (Gas Pressure) and HIP (Hot Isostatic Pressure, mainly) sintered silicon nitride balls,Ø3.969mm is our mainly produced size .



Many kinds of HIP silicon nitride precision bearing ball



Ceramin material engineering properties



Mechanical Properties HIP-Si3N4 GPS-Si3N4
Density 3.27-3.29 g/cm3 3.22-3.27 g/cm3
Porosity 0% 0%
Fledural Strength 830 MPa 689 MPa
Elastic Modulus 310 GPa 310 GPa
Poisson's Ratio 0.27 0.24
Hardness 1580 HV5 1450 HV5
Fracture Toughness KIC 6.1 MPa.m1/2 5.7  MPa.m1/2
Max. Use Temperature 1000 ℃ 1000 ℃
Thermal conductivity 30 W/m° K 29 W/m° K



Ceramic Si3n4 Ceramic Ball 1mm 3.969mm 5mm 1
