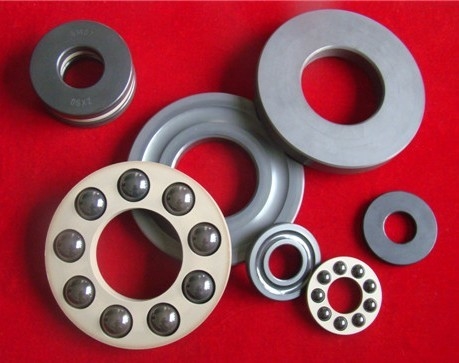

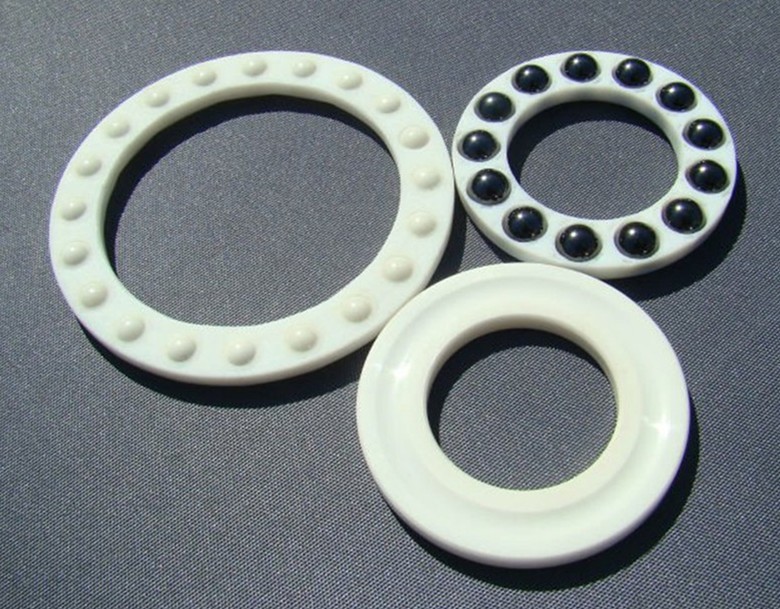

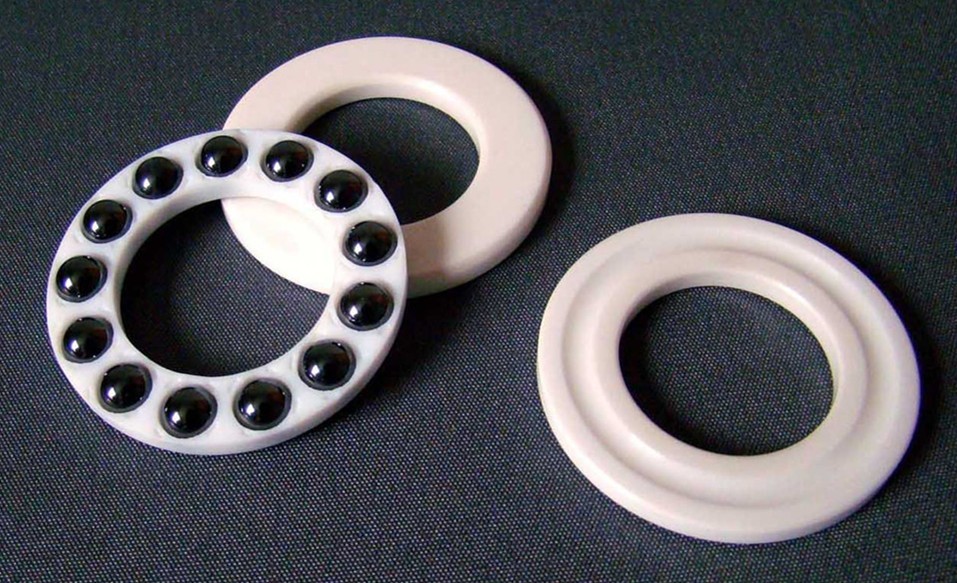

Single Direction Ball 51100 Ceramic Thrust Bearing White Or Black

  • Single Direction Ball 51100 Ceramic Thrust Bearing White Or Black
  • Single Direction Ball 51100 Ceramic Thrust Bearing White Or Black
  • Single Direction Ball 51100 Ceramic Thrust Bearing White Or Black
Place of Origin China
Brand Name CSQ
Model Number 51100 or 51200 series
Minimum Order Quantity 20 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time Negotiable
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Thrust Bearings Race Material Silicon Nitride Or Silicon Carbide Or Zirconia
Ball Material Silicon Nitride Or Silicon Carbide Or Zirconia Cage Material Peek Or Or Brass
Model 51100 Or 51200 Series Pacage Foam+cartom Box
Highlight

51100 ceramic thrust bearing

,

single direction ceramic thrust bearing

,

51100 ceramic ball bearings
Leave a Message
Product Description



All Ceramic Thrust Bearings Of Si3N4/SSiC/ZrO2 Rings And Balls+Peek/ Cage



Description of All Ceramic Thrust Bearings:



1. The material of races and balls can be chosen among silicon nitride, silicon carbide and zirconia.



2. The material of cage can be chosen among PEEK, and Brass, we can customize any material combination according to your requirement.


Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature

℃
(℉)

1650
(3000)

1000
(1830)

1000
(1830)

380
(716)


Reference data of Ceramic single direction thrust ball bearing:



Bearings model

Form size

d (mm)

Form size

D (mm)

Form size

B (mm)

Load
Cr (N)

Load

Cor (N)

Max.Speed

Grease (rpm)

Max. Speed

Oil (rpm)
51100CE 10 24 9 8000 11900 6800 10000
51200CE 10 26 11 10160 14535 5900 8800
51101CE 12 26 9 8240 13090 6500 9800
51201CE 12 28 11 10560 16150 5600 8500
51102CE 15 28 9 8400 14280 6200 9400
51202CE 15 32 12 13280 21080 5100 7600
51103CE 17 30 9 8640 15470 6000 9100
51203CE 17 35 12 13680 23205 4800 7300
51104CE 20 35 10 11440 20995 5300 8000
51204CE 20 40 14 17760 31875 4200 6300
51105CE 25 42 11 15600 31450 4600 6900
51205CE 25 47 15 22240 42925 3700 5600
51106CE 30 47 11 16320 35700 4300 6500
51206CE 30 52 16 23440 49300 3400 5200
51107CE 35 52 12 16320 37825 4000 6000
51207CE 35 62 18 31200 66300 2900 4400
51108CE 40 60 13 21520 53550 3500 5300
51208CE 40 68 19 37600 82725 2700 4100
51109CE 45 65 14 22240 58650 3300 4900
51209CE 45 73 20 38000 89250 2600 3900
51110CE 50 70 14 23040 64175 3100 4700
51210CE 50 78 22 38800 95200 2400 3600
51111CE 55 78 16 28000 79050 2800 4200
51211CE 55 90 25 55600 135150 2100 3100
51112CE 60 85 17 33200 96050 2600 3900
51212CE 60 95 26 58800 152150 2000 3000
51113CE 65 90 18 33200 99450 2400 3700
51213CE 65 100 27 60000 160650 1900 2800
51114CE 70 95 18 34400 107950 2400 3600
51214CE 70 105 27 60800 169150 1800 2800
51115CE 75 100 19 35600 115600 2200 3400
51215CE 75 110 27 62000 177650 1800 2700
51116CE 80 105 19 35600 119850 2200 3300
51216CE 80 115 28 62800 186150 1700 2600
51117CE 85 110 19 36800 127500 2100 3200
51217CE 85 125 31 76400 224400 1600 2400
51118CE 90 120 22 47600 161500 1900 2900
51218CE 90 135 35 92800 276250 1400 2100



Why choose us:



Our mother company has more than 20 years professional experiences in research and development and production of ceramic bearings, as its controlled company, we follow our tradition, will be one of the most professional Chinese ceramic bearing manufacturer.
