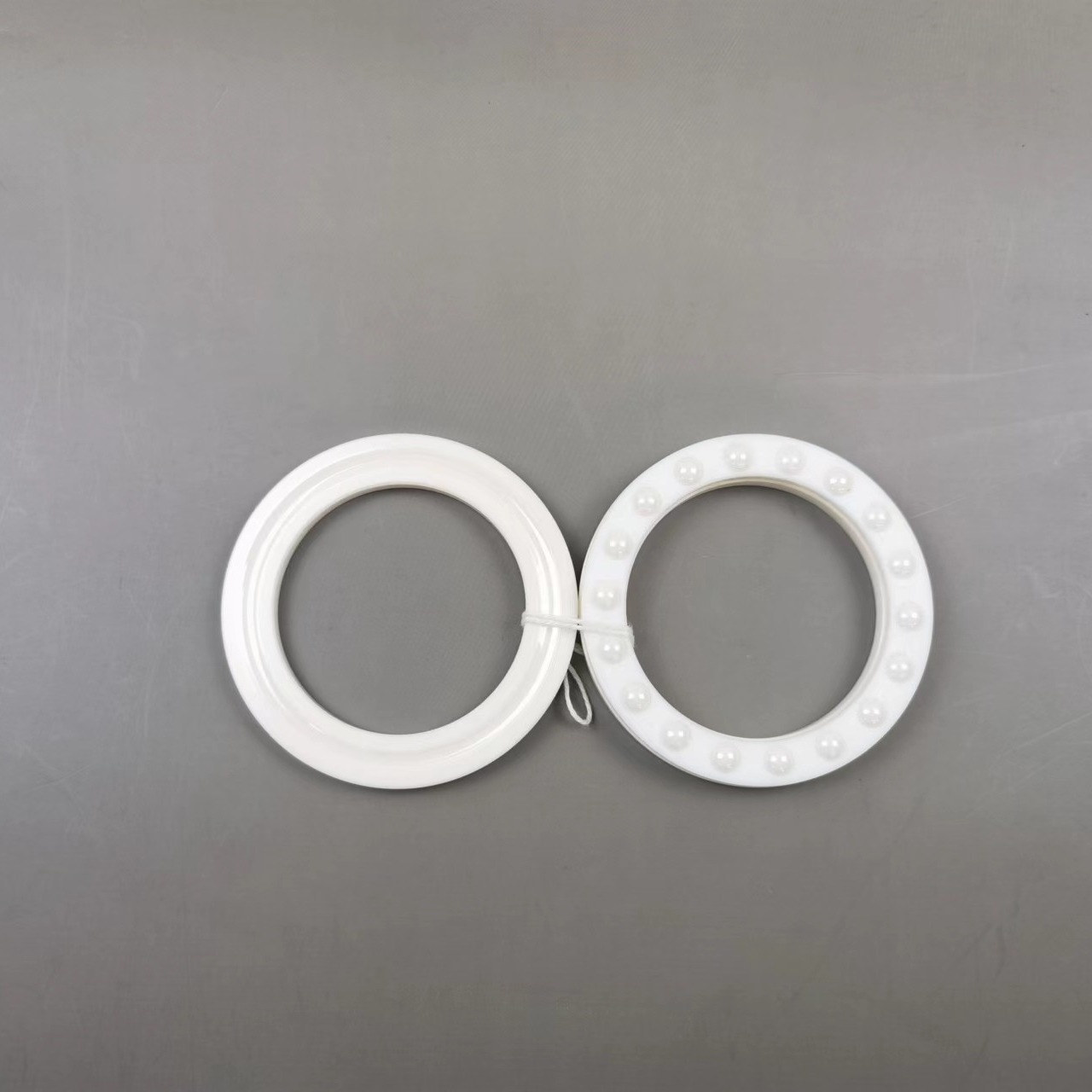

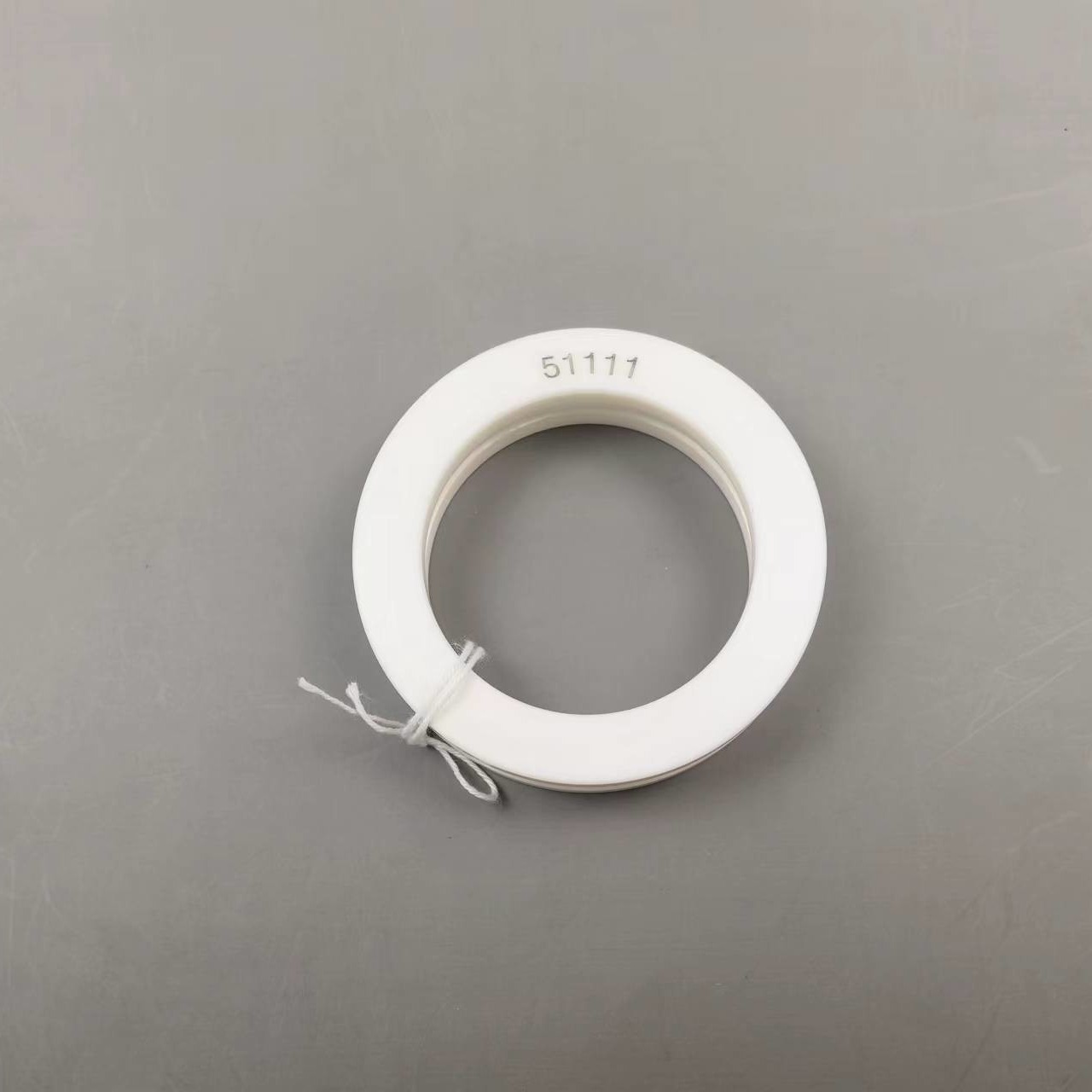

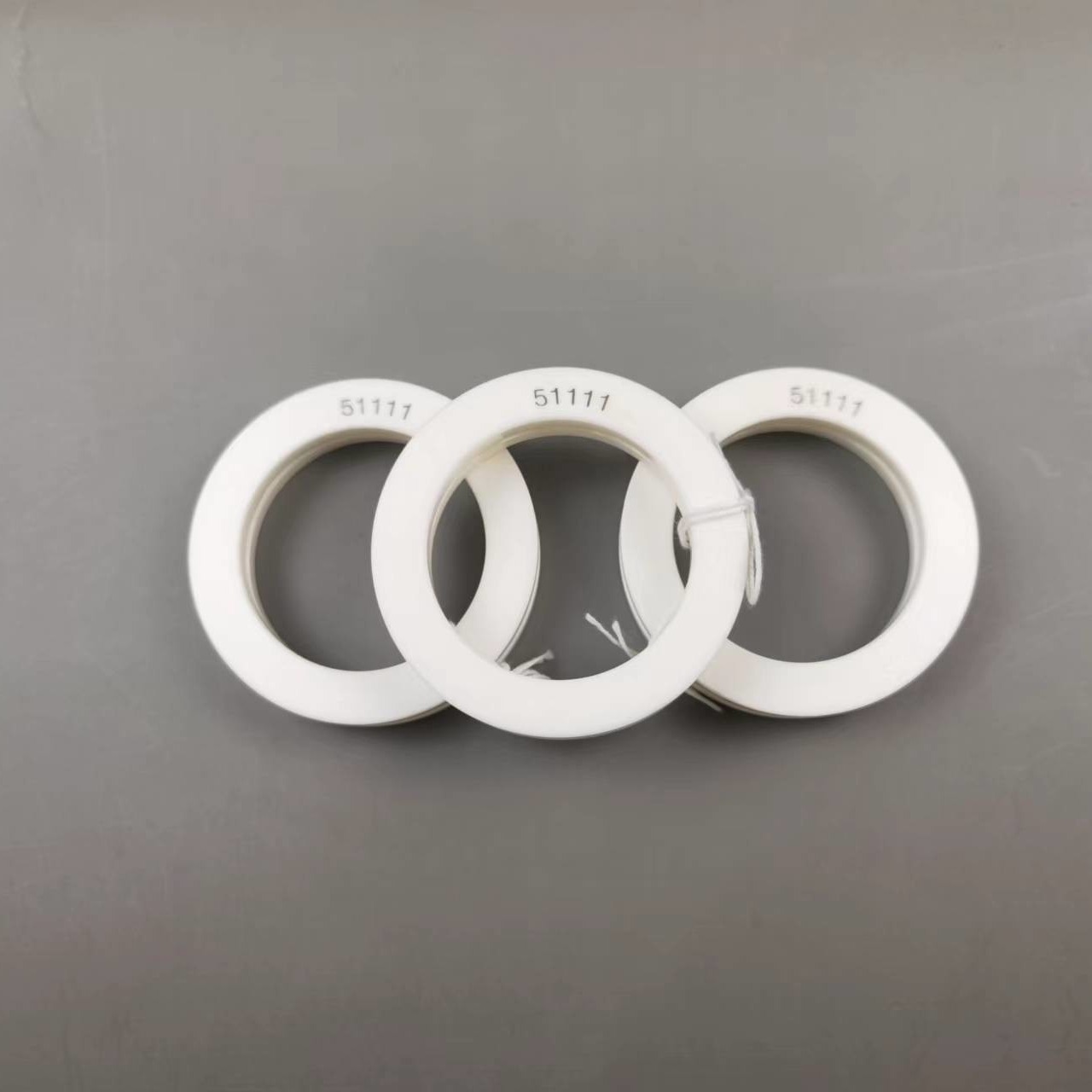

Zr Ceramic Thrust Bearing 51111 ZrO2 Races Balls PTFE Cage

  • Zr Ceramic Thrust Bearing 51111 ZrO2 Races Balls PTFE Cage
  • Zr Ceramic Thrust Bearing 51111 ZrO2 Races Balls PTFE Cage
  • Zr Ceramic Thrust Bearing 51111 ZrO2 Races Balls PTFE Cage
Place of Origin China
Brand Name CSQ
Model Number 51111
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Plastik box+carton box
Delivery Time 30-40 work days
Payment Terms T/T
Supply Ability 50 pcs in 30-40 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Thrust Bearing 51111 Material Zirconia Races And Balls+PTFE Cage
Precision P6/ABEC3 Form Size 55×78×16mm
Fixing Size 57×78mm Pacage Plastik Box+carton Box
Highlight

CSQ Ceramic Thrust Bearing 51111

,

CSQ zr Ceramic Thrust Bearing

,

CSQ 51111 thrust bearing
Leave a Message
Product Description



Ceramic Thrust Bearing 51111 In Material Of ZrO2 Races and Balls+PTFE Cage



Description of Ceramic Thrust Bearing 51111 (ZrO2 Races and Balls+PTFE Cage):



1. ZrO2 races and balls: Are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material, are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.



2. PTFE cage:  has excellent chemical stability, can resistant to molten metal sodium and liquid fluorine, to all kinds of acid and alkali resistance and organic solvent,can work in +250℃ to -180℃ temperature for a long time.



Performance advantage of Ceramic Thrust Bearing 51111 (ZrO2 Races and Balls+PTFE Cage):



►Key properties of zirconia
♦High hardness : 1300 HV5
♦ High density: 6.09 g/cm3
♦ Max Temperature up to 380℃
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2 and good wear resistance
♦ Low thermal conductivity
♦ Better bearing capacity
♦ Good magnetic and electric insulation

























Ceramic Bearings Dimension Reference
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
  Cr(N) Cor(N) Grease (rpm) Oil (rpm)
51111CE 28000 79050 2800 4200



Main application of Ceramic Thrust Bearing 51111(ZrO2 Races and Balls+PTFE Cage):



Because of the outstanding porperties of zirconia, zirconia ceramic bearings are suitable for chemical, antimagnetic, semiconductor, new energy industry and corrosive working environment and an enviroment with some vibration.
