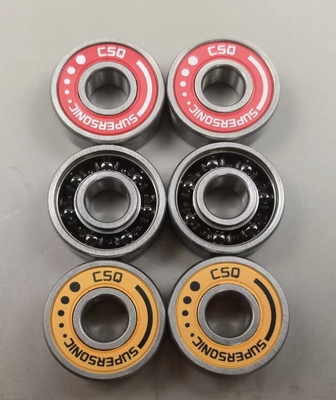

608 Hybrid Ceramic Bearing Silicon Nitride Si3N4 Colorful Rubber Seals
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 608 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |

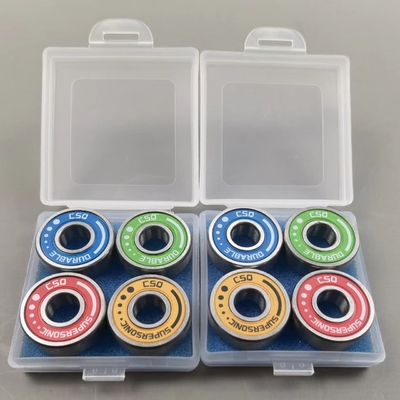

| Packaging Details | Plastik box+carton box |
| Delivery Time | 5 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 5 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Hybrid Si3N4 Ball Bearing 608 | Size | Ø8×Ø22×7mm |
|---|---|---|---|
| Precision | ZV3/ZV4 | Race And Ball Material | GCr15 Races+Si3N4 Balls+ |
| Cage And Seals Material | Nylon/PEEK/ Cage+Colorful Rubber Seals | MOQ | 50 Pieces |
| Pacage | Plastik Box+carton Box | ||
| Highlight | 608 hybrid ceramic bearing silicon nitride,hybrid ceramic bearing silicon nitride Si3N4,bearing full ceramic si3n4 |
||
Product Description
Hybrid Si3N4 Ball Bearing 608 With Coloful Rubber Seals
Description of Hybrid Si3N4 Ball Bearing 608:
1. GCr15 Races: GCr15 bearing steel is a kind of high carbon chromium bearing steel with less alloy content, good performance and the most widely used. After quenching and tempering, it has high and uniform hardness, good wear resistance and high contact fatigue performance.
2. Si3N4 ceramic balls: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology. Compared with GPS sintered silicon nitride material, the porosity, wear resistance, crushing value and fatigue contact life of after HIP sintered sinlicon nitride have been greatly improved, which is the preferred material for ultra-high speed and high precision ceramic bearings.
3. PEEK and cage: PEEK material has similar corrosion resistance to ceramic materials, and has a good resistance to radiation, self-lubricating properties, a high degree of wear resistance and other characteristics. And material Has excellent chemical stability, corrosion resistance (is one of the best corrosion resistance materials in the world today, in addition to molten metal sodium and liquid fluorine, can withstand all other chemicals
4.Rubber seals: Protect bearings against dust.
Performance advantages of Hybrid Si3N4 Ball Bearing 608:
Non-magnetic, non-conductive, low noise, electrically insulated, non-locking at high speeds, resistant to dry friction, long life, cost effective and etc.
| ► Key properties of hot isostatic sintered silicon nitride |
| ♦ Max temperature to 1000℃ |
| ♦ High strength over a wide temperature range |
| ♦ High fracture toughness: 6.1 MPa-m1/2 |
| ♦ High hardness: 1580 HV5 |
| ♦ Outstanding wear resistance, both impingement and frictional modes |
| ♦ Good thermal shock resistance |
| ♦ Good chemical stability,resistance to acid and alkali corrosion |
| ♦ Good electric insulation |
Why choose us:
Zhongxing Shiqiang Technology (Tianjin) Co., Ltd. mainly produces ceramic rolling bearings and ceramic balls. At present, our company has established a production line for automatic grinding and assembly of ceramic bearings, and designs an annual output of 3 million sets of 608 all-ceramic bearings and mixed ceramic bearings whose precision grades can reach P5 and P4.
