608 Abec 7 Ceramic Hybrid Bearings Silicon Nitride High Precision Waterproof
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 608 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | 5 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 5 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 608 Hybrid Ceramic Bearing | Category | Miniature Hybrid Ceramic Ball Bearing |
|---|---|---|---|
| Size | Ø8×Ø22×7mm With Ø3.969mm Si3N4 Balls | Race Material | GCr15 |
| Ball Material | Si3N4 (Silicon Nitride) | Cage And Seals | Peek//Nylon Cage+Rubber Seals |
| MOQ | 50 Pieces | Pacage | Plastik Box+carton Box |
| Highlight | abec 7 ceramic hybrid bearings,608 bearing waterproof,hybrid ceramic bearing silicon nitride |
||
Product Description

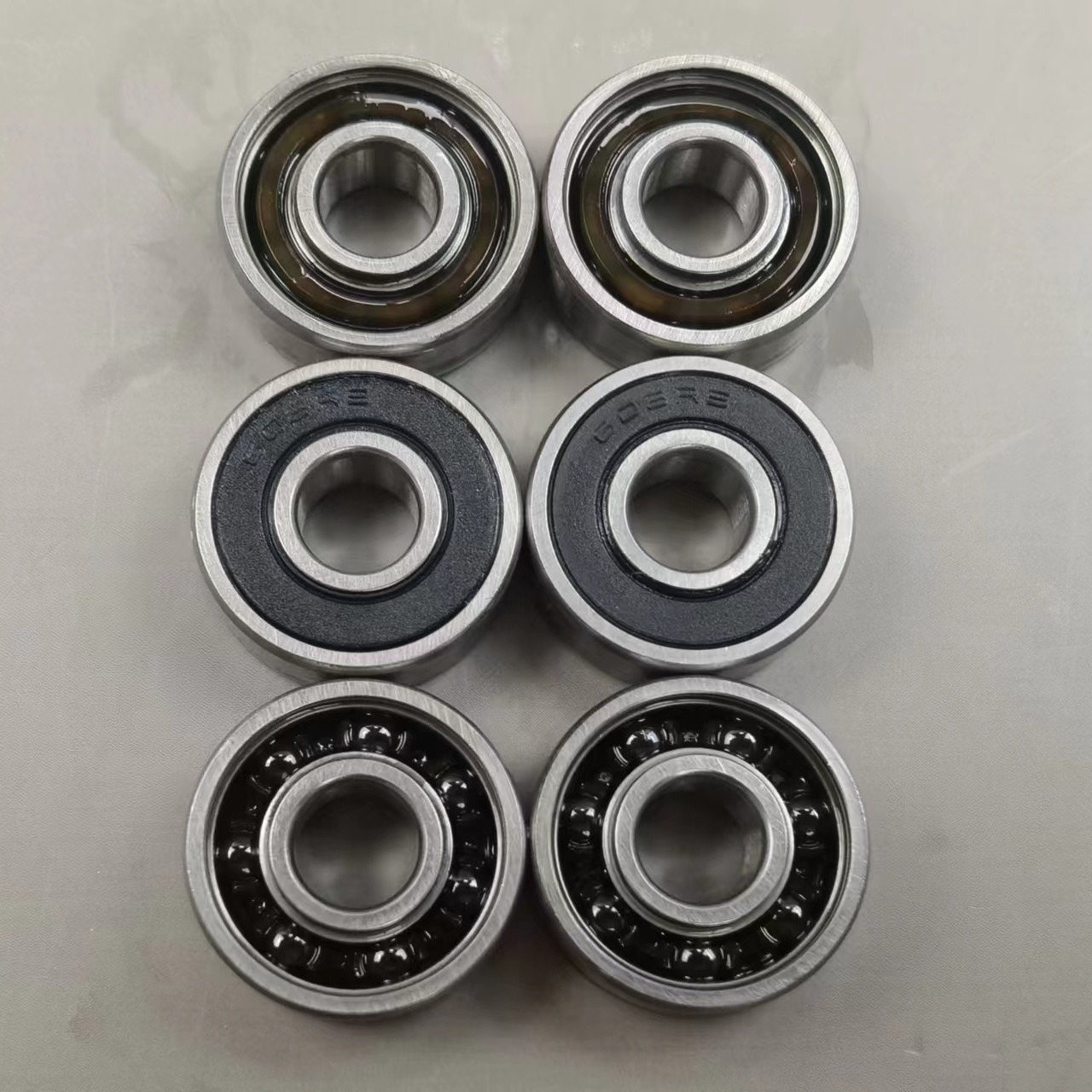

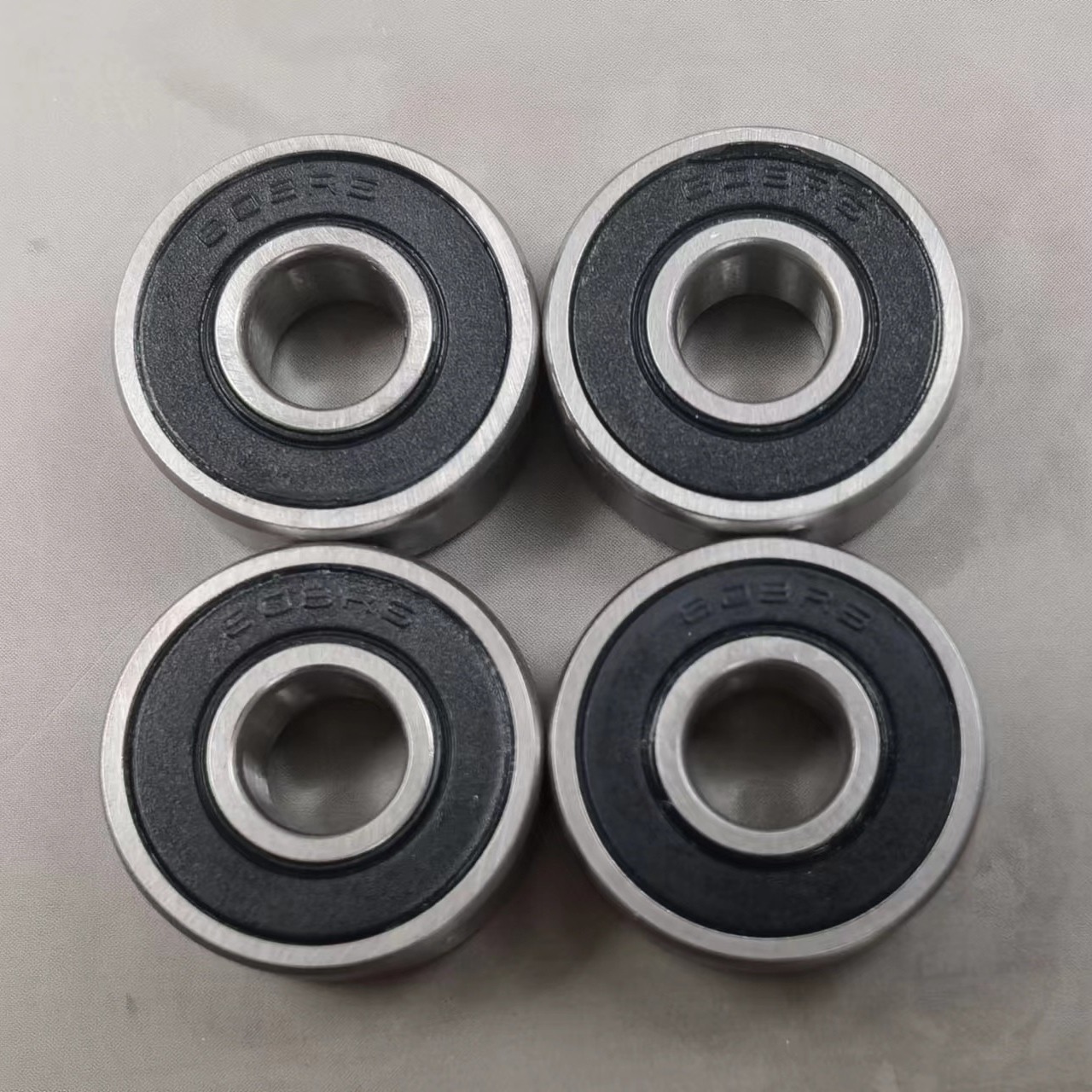

608 Hybrid Ceramic Bearing With high precision Ceramic balls
Description of Hybrid ceramic ball bearing 608:
GCr15 is a kind of high carbon chromium bearing steel with less alloy content. After quenching and low temperature tempering, it has higher hardness, uniform structure, good wear resistance and high contact fatigue performance. Because of the above properties, GCr15 is suitable material for bearing races. Inside fitted with good quality nylon cage and our G5 precision zirconia or silicon nitride balls, which are processed after hot isostatic pressure sintering technology and careful grinding production.
Peek and material both have outstanding chemical stability, is resistant to many kinds of corrosion, are ideal material for bearings cage. Nylon cage has good cost performance.
Performance advantages of Hybrid ceramic ball bearing 608:
Non-magnetic, non-conductive, low noise, electrically insulated, non-locking at high speeds, resistant to dry friction, long life, cost effective and etc.
| ► Key properties of hot isostatic pressure sintered silicon nitride |
| ♦ Max temperature to 1000℃ |
| ♦ High strength over a wide temperature range |
| ♦ High fracture toughness: 6.1 MPa-m1/2 |
| ♦ High hardness: 1580 HV5 |
| ♦ Outstanding wear resistance, both impingement and frictional modes |
| ♦ Good thermal shock resistance |
| ♦ Good chemical stability,resistance to acid and alkali corrosion |
| ♦ Good electric insulation |
