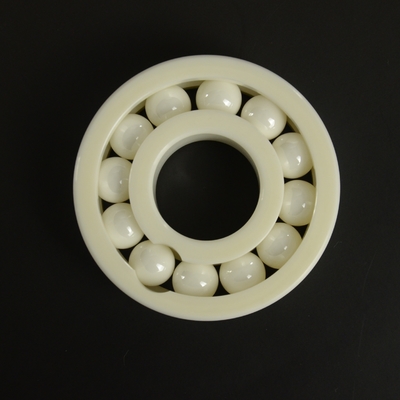

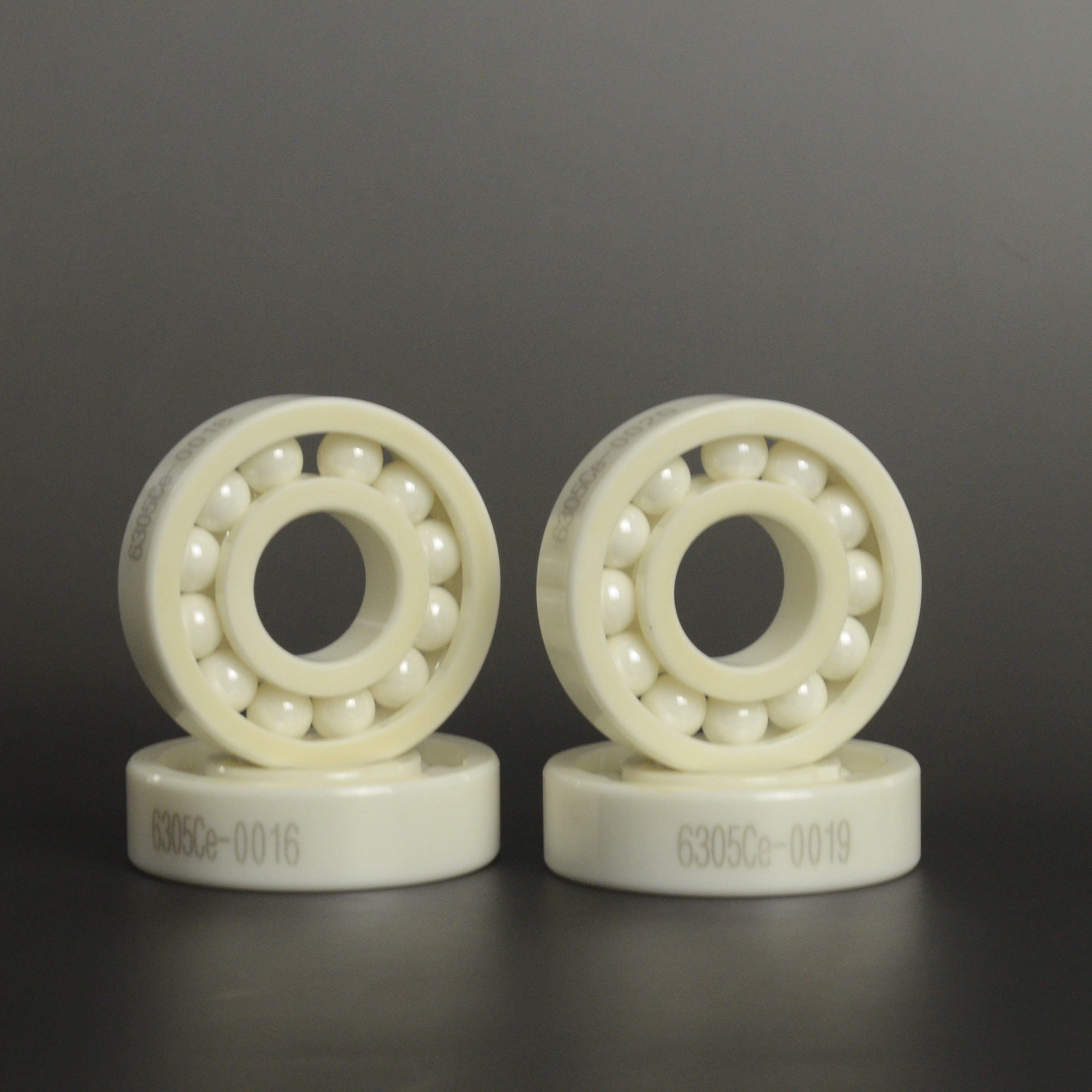

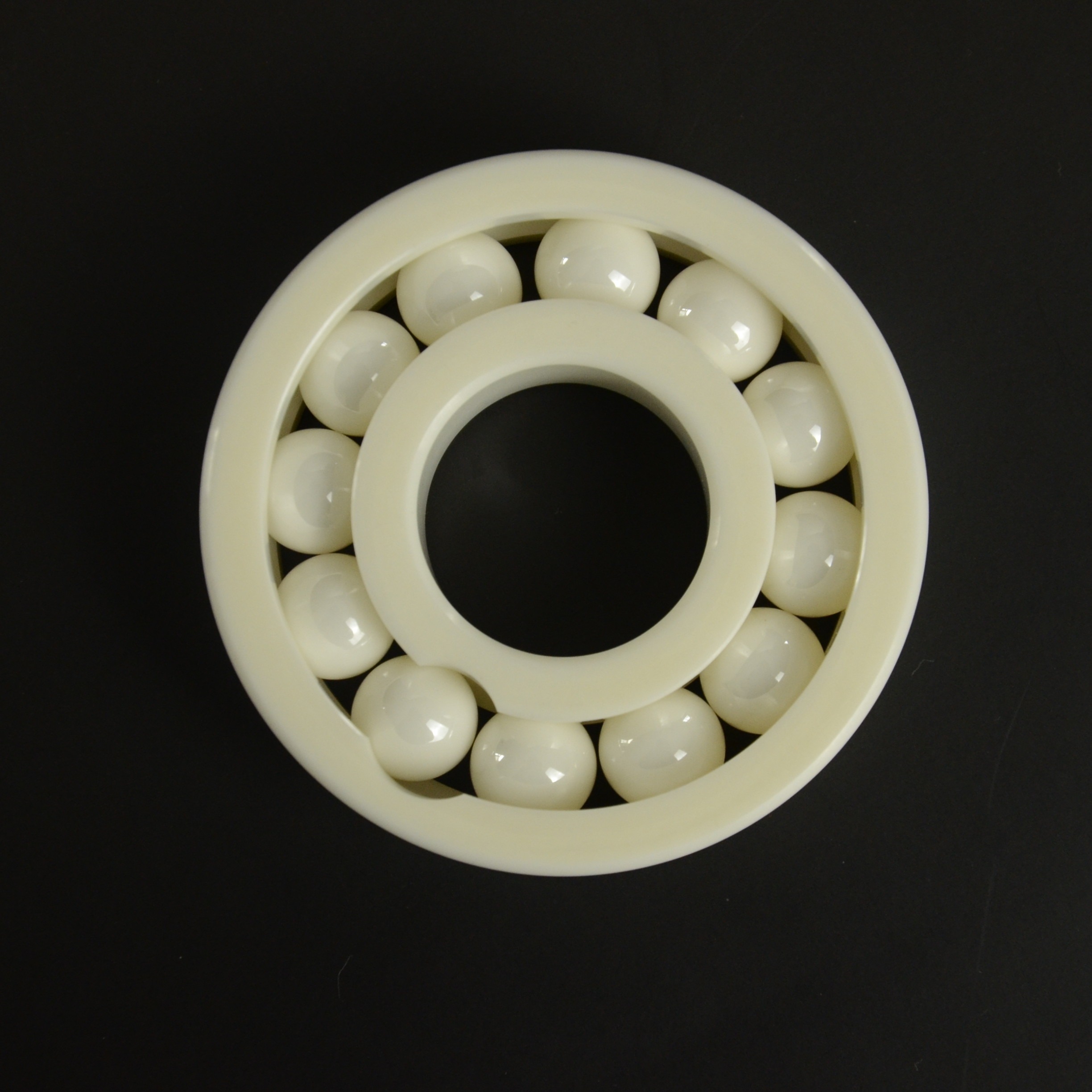

6305 Ceramic Bearing Zirconia P6 ABEC3 To P4 Abec 7
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 6305 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | 30-40 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 30-40 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 6305 Zirconia Bearing | Category | Full Ceramic Ball Bearing |
|---|---|---|---|
| Material | Zirconia Races And Balls | Precision | P6/ABEC3 To P4/ABEC7 |
| Form Size | 25×62×17mm | Ball Size | 11.509 Mm |
| Pacage | Plastik Box+carton Box | MOQ | 50 Pieces |
| Highlight | 6305 ceramic bearing,ceramic abec 7 bearings,6305 Ceramic Bearing Zirconia |
||
Product Description
6305 Zirconia Ceramic Bearings OF P6/ABEC3 To P4/ABEC7 Precision
Description of 6305 Zirconia Bearing (Full Ball):
Racas and balls made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material, are processed by AP (Atmospheric Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology, so their porosity, wear resistance, impact resistance and resistance to fatigue contact life are greatly improved, to which is the ordinary zirconia bearings incomparable.
Performance advantages of 6305 Zirconia Bearing (Full Ball):
A kind of special bearings through full grinding, with high precision and a variety of excellent performance, has a density and linear expansion coefficient close to that of metal steel shafts, high hardness Hv1280, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance, high operating speed, impact resistance, small starting torque, resistance to dry friction, is one of the most widely used ceramic bearings
Application of 6305 Zirconia Bearing (Full Ball):
Because of the outstanding porperties of zirconia and , the zieconia bearings are suitable for certain vibration and mild impact environment, such as chemical, antimagnetic, semiconductor, medium/low speed and corrosive working environment.
| ►Key properties of zirconia |
| ♦ Max Temperature up to 380℃ |
| ♦ High density: 6.09 g/cm3 |
| ♦ Low thermal conductivity |
| ♦ Chemical stability, resistance to acid and alkali corrosion |
| ♦ High fracture toughness KIC:8-11 MPa-m1/2 |
| ♦ Good electric insulation |
| ♦ Better bearing capacity |
| ♦ Wear resistance |
| ♦ High hardness : 1300 HV5 |
