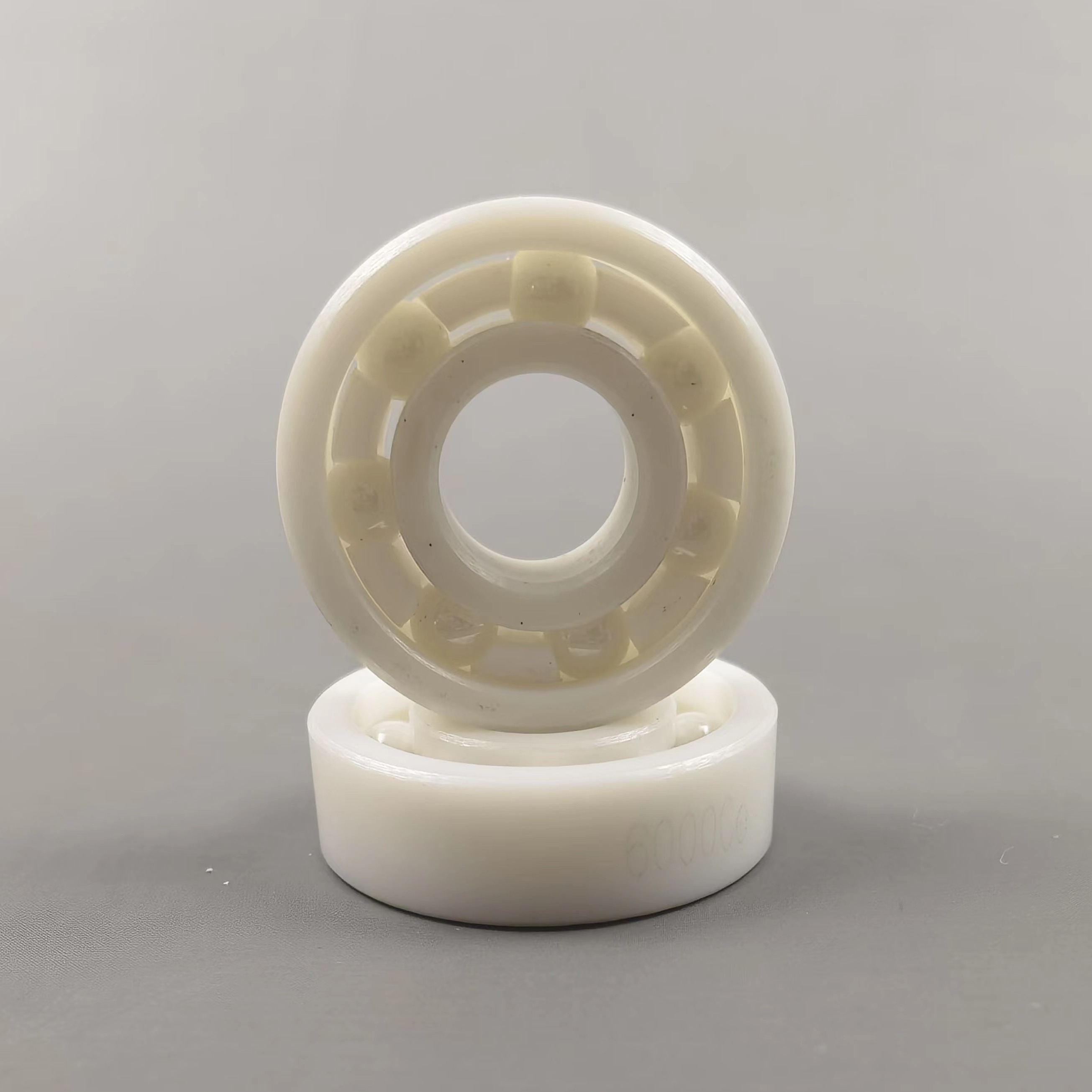

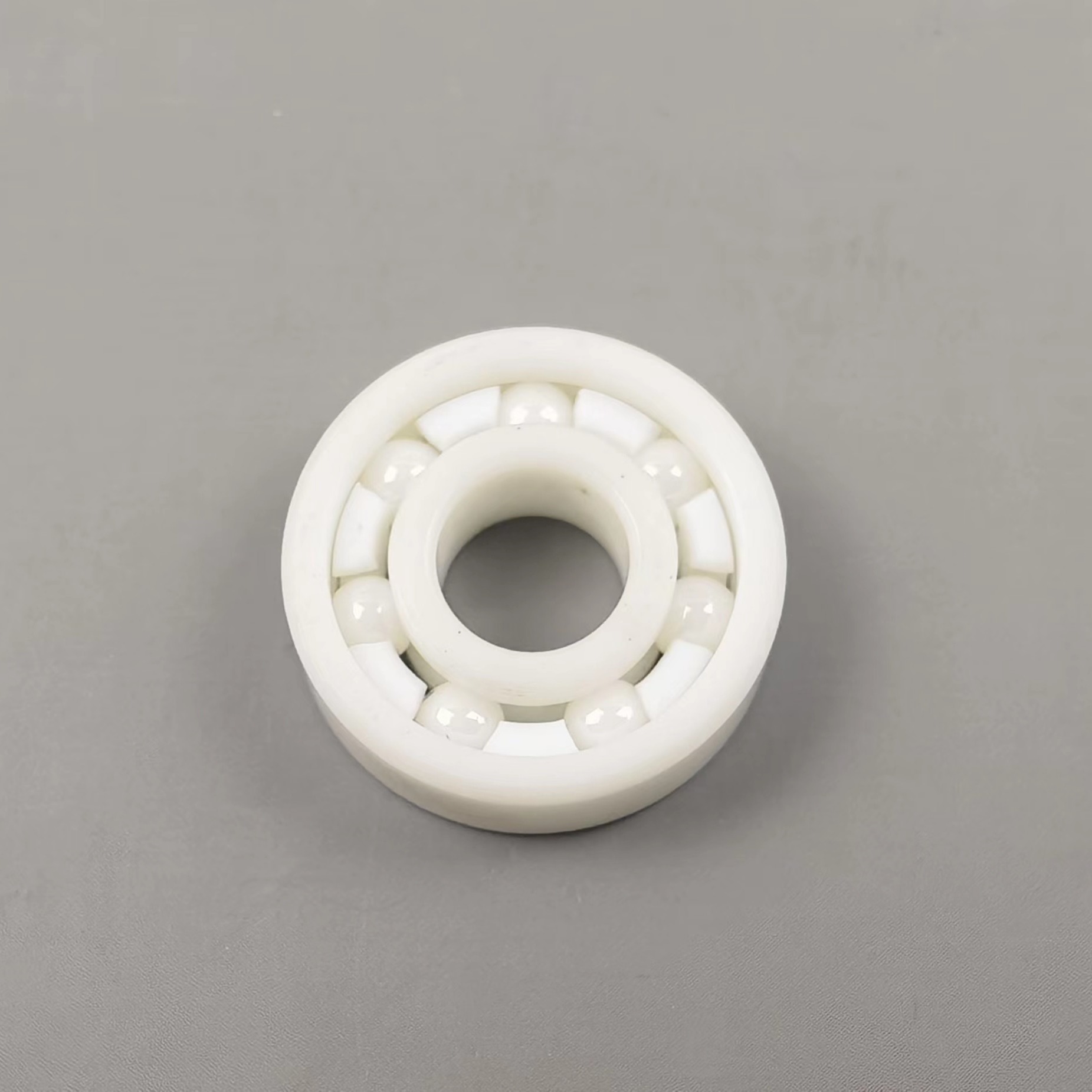

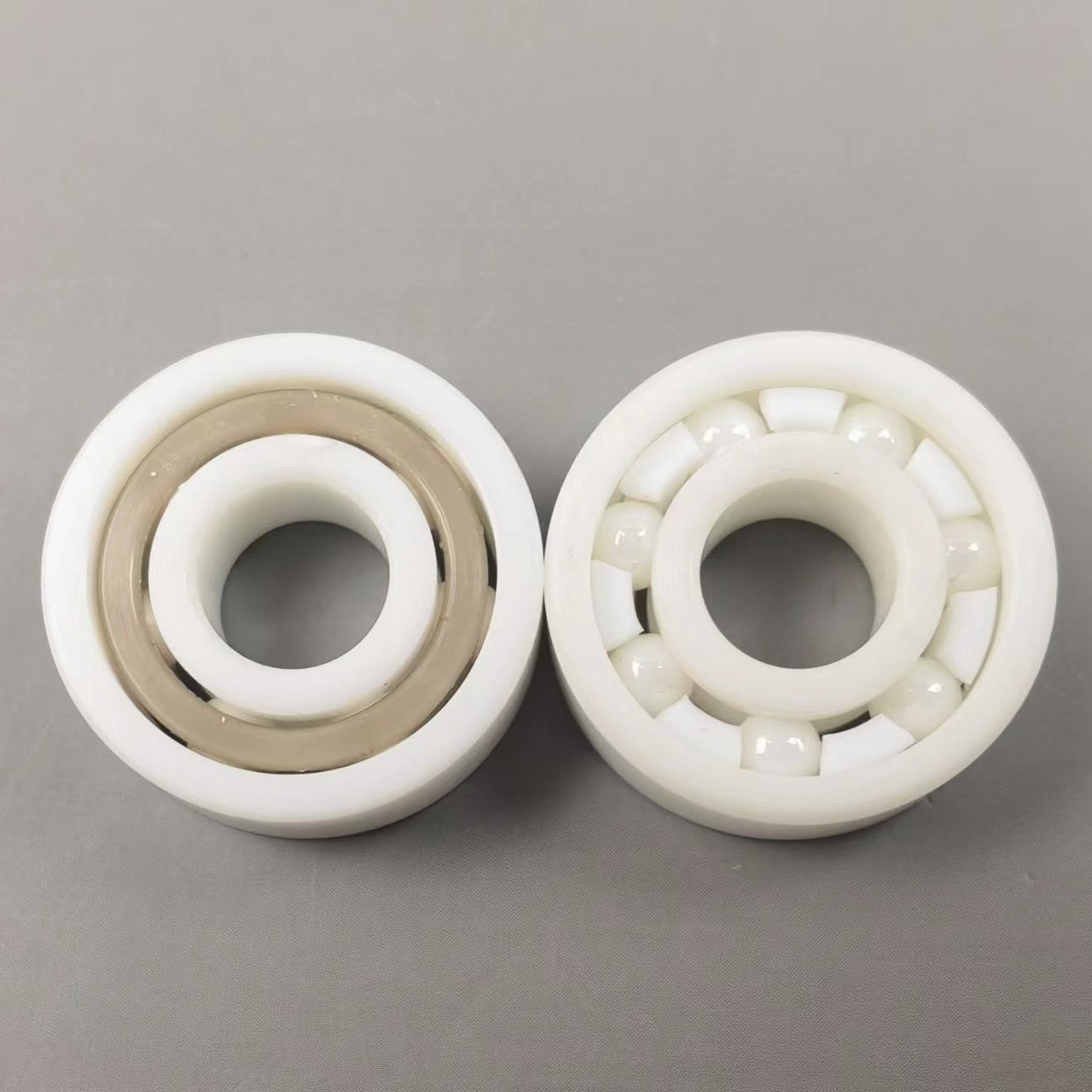

6000 Zr Zirconia Bearing Zirconium Caged P6 ABEC 3

Zirconia Bearing 6000Ce Fitted with Cage Of P6/ABEC3 Precision

Description of Zirconia Bearing 6000 (Zirconia+) :

1. ZrO2 races and balls: Races are made by highly purified, sub-micron and after Y2O3-TZP stabled zirconia powder material, are processed by  HIP (Hot Isostatic Pressure) sintering technology. The races are assembled with after HIP processed zirconia balls in size of 4.763mm.

2. cage:  has excellent chemical stability, corrosion resistance (is one of the best corrosion resistance materials in the world today,) can resistant to molten metal sodium and liquid fluorine, to all kinds of acid and alkali resistance and organic solvent, with sealing, high lubrication, non-viscosity, electrical insulation and good anti-aging endurance, excellent temperature resistance (can work in +250℃ to -180℃ temperature for a long time). So the cage and seals of this material fitted in bearings can be used in many special working condition.

Performance advantages of Zirconia Bearing 6000 (Zirconia+) :

Zirconia bearings have a density and linear expansion coefficient close to that of metal steel shafts, high hardness HV1280, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance, high operating speed, impact resistance, small starting torque, resistance to dry friction, is one of the most widely used ceramic bearings.

Application of Zirconia Bearing 6000 (Zirconia+) :

Because of the outstanding porperties of zirconia and , the ZrO2 bearings are suitable for certain vibration and mild impact environment, such as chemical, antimagnetic, semiconductor, medium/low speed and corrosive working environment.
