20x20x2mm Advanced Structural Ceramics Zirconia Silicon Nitride Plate Sheet

  • 20x20x2mm Advanced Structural Ceramics Zirconia Silicon Nitride Plate Sheet
  • 20x20x2mm Advanced Structural Ceramics Zirconia Silicon Nitride Plate Sheet
  • 20x20x2mm Advanced Structural Ceramics Zirconia Silicon Nitride Plate Sheet
Place of Origin China
Brand Name CSQ
Model Number Customized
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time 20-30 work days
Payment Terms T/T
Supply Ability 50 pcs in 20-30 days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Plate Category Advanced Structural Ceramic
Material Silicon Nitride Or Zirconia Shape Customized, According To The Drawings
Size Customized Pacage Foam+cartom Box
Highlight

zirconia ceramic plate

,

silicon nitride plate 20x20x2mm

,

silicon nitride structure
Leave a Message
Product Description



Customized Ceramic Plate Of Silicon Nitride/Zirconia With High Precision



Description of ceramic plate:



1. Silicon nitride plate: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.



2. Zirconium oxide plate: Our zirconia material has a density and linear expansion coefficient close to that of metal steel shafts, high hardness Hv1300, wear resistance, resistance to various strong acids, strong alkalis, salt corrosion (except hydrofluoric acid), non-magnetic, non-conductive, high temperature resistance, high operating speed, impact resistance, small starting torque, resistance to dry friction,



► Key properties of silicon nitride
♦ Max temperature to 1000℃
♦ High strength over a wide temperature range
♦ High fracture toughness: 6.1 MPa-m1/2
♦ High hardness: 1580 HV5
♦ Outstanding wear resistance, both impingement and frictional modes
♦ Good thermal shock resistance
♦ Good chemical stability,resistance to acid and alkali corrosion
♦ Good electric insulation



►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5

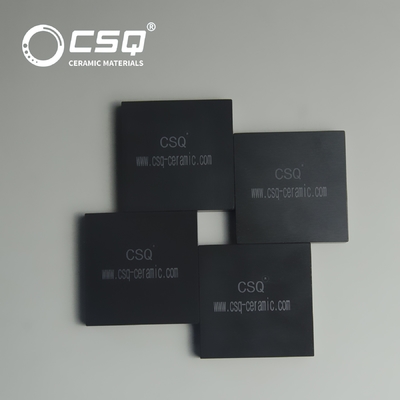

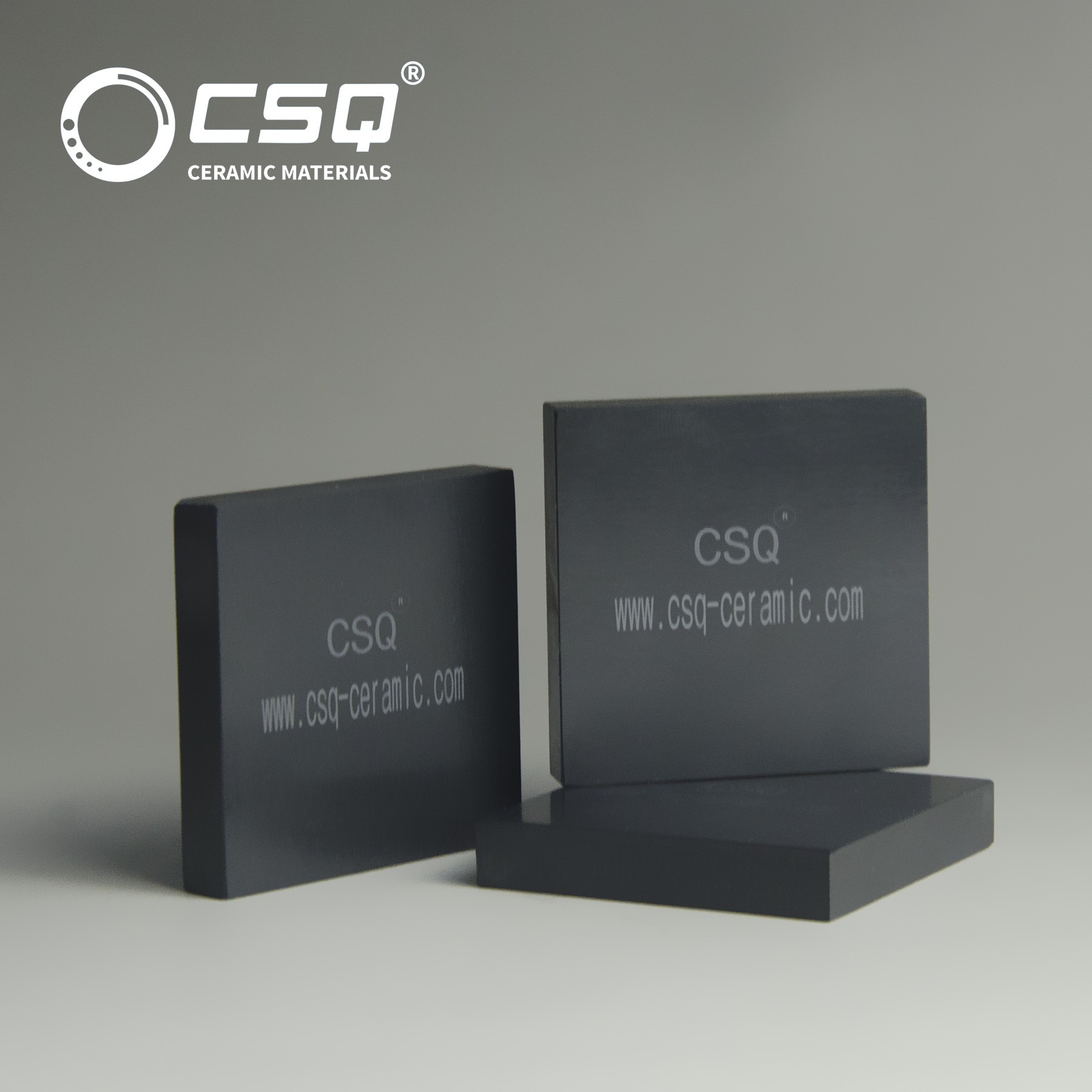

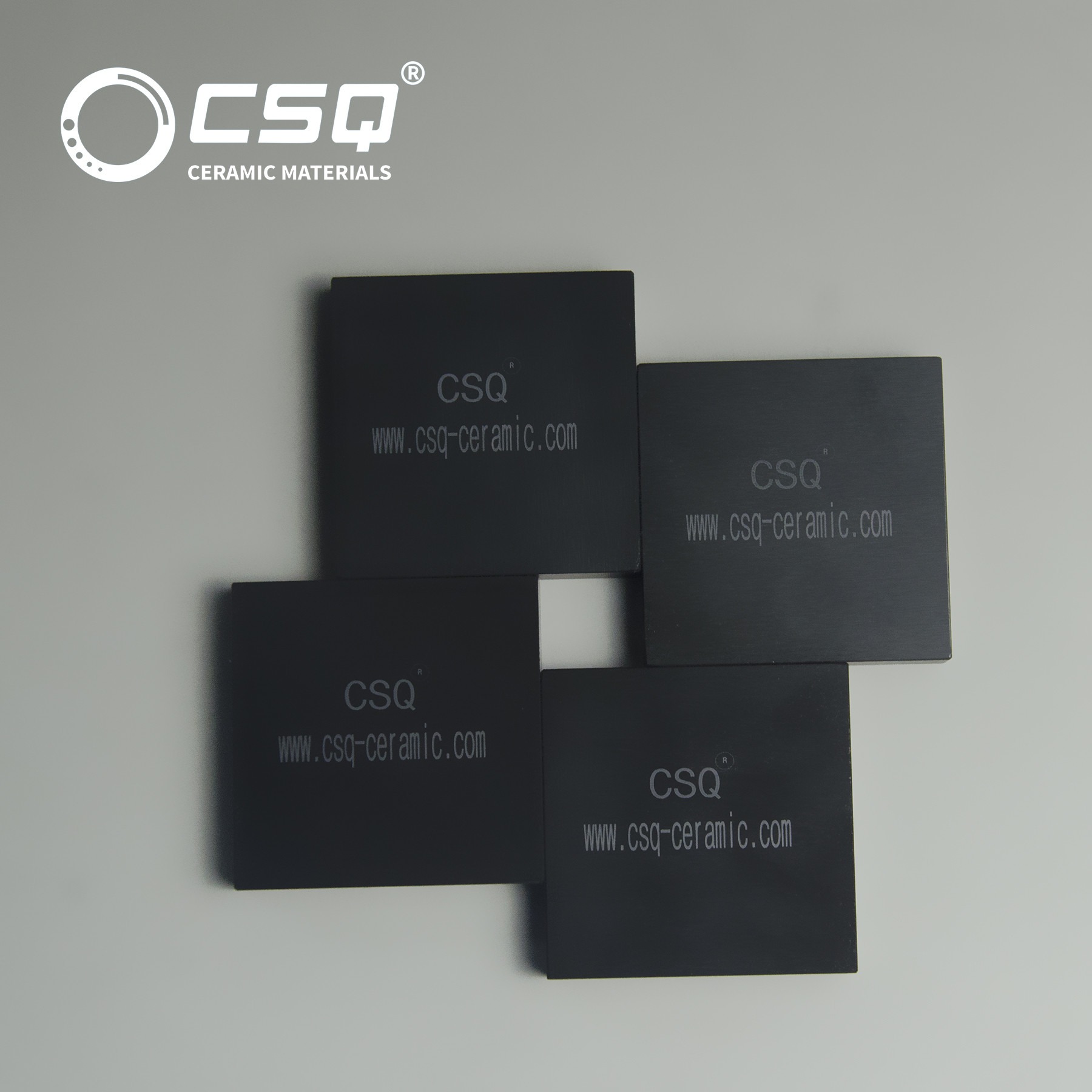

20x20x2mm Advanced Structural Ceramics Zirconia Silicon Nitride Plate Sheet 0



20x20x2mm Advanced Structural Ceramics Zirconia Silicon Nitride Plate Sheet 1
