Silicon Carbide Zirconium Ceramic Ball Valve Zirconia CSQ

  • Silicon Carbide Zirconium Ceramic Ball Valve Zirconia CSQ
  • Silicon Carbide Zirconium Ceramic Ball Valve Zirconia CSQ
Place of Origin China
Brand Name CSQ
Minimum Order Quantity 10 pcs/one size/one material
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time 45-60 work days
Payment Terms T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Ceramic Ball Valve Category Ceramic Ball Valve
Material Zirconia/silicon Carbide Size Customized,According To The Drawings
Color White Or Black Use Transmits Strong Corrosive Material And High Wear-resisting Material
Characteristics Large Contact Area, Tight Seal, And Less Leakage Pacage Foam+cartom Box
Highlight

zirconium ball valve

,

silicon carbide valve

,

Ceramic ball valve CSQ
Leave a Message
Product Description

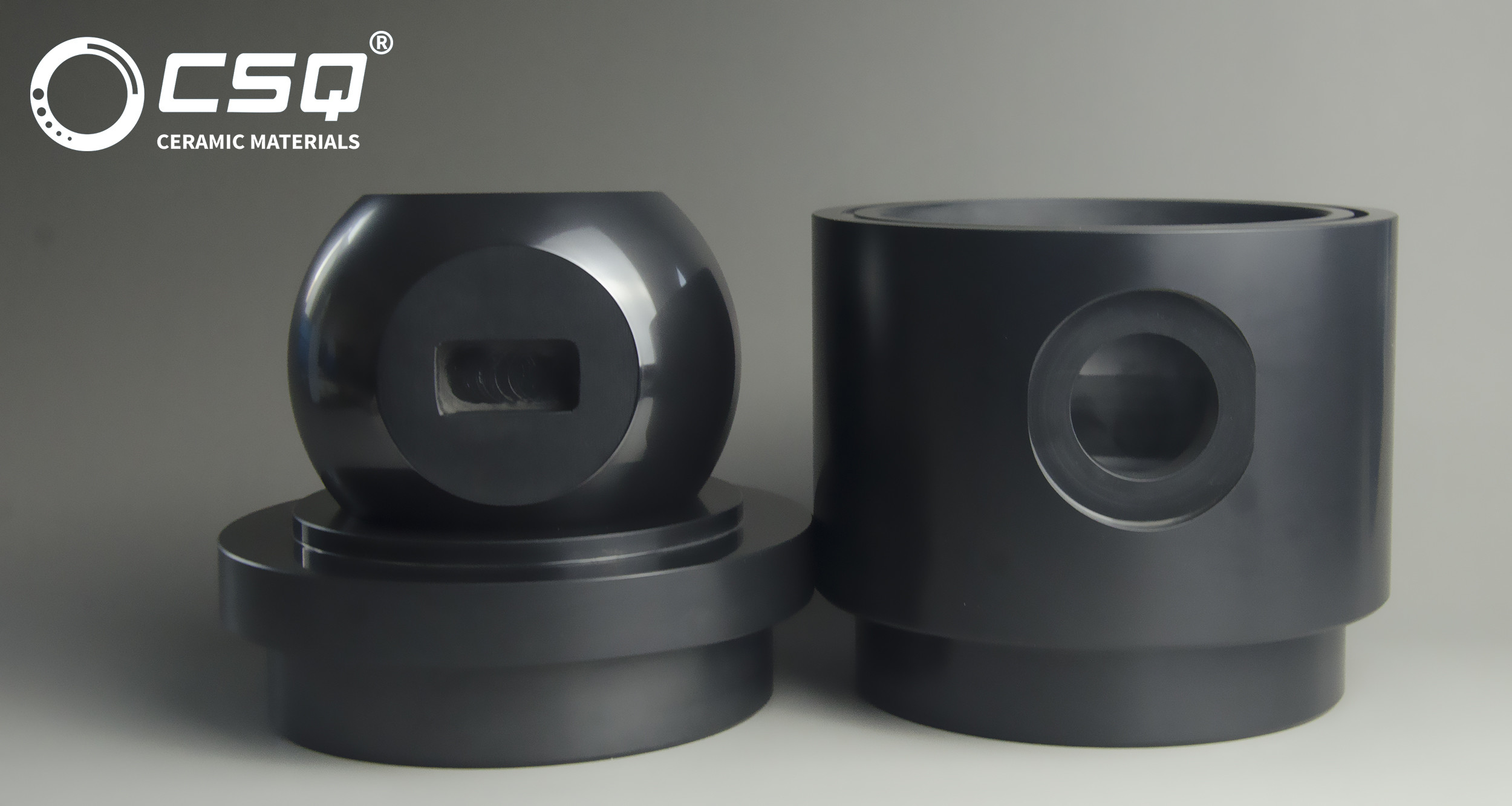

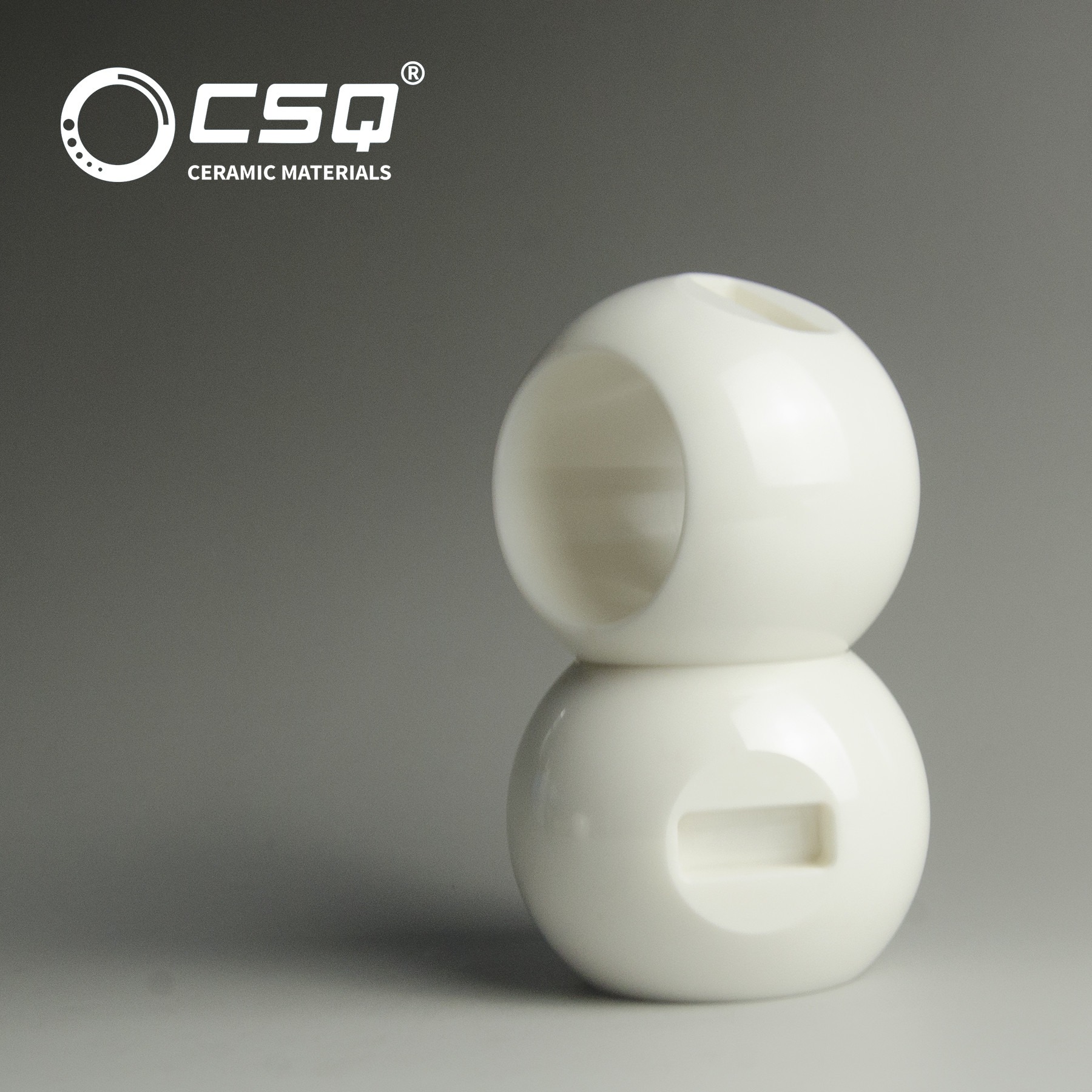

Ceramic ball valve of zirconia/silicon carbide with high precision



Description of Ceramic Ball Valve:



The ball valve has tha advantage of large contact area, tight seal, and less leakage, etc. It can be divided two kinds: floating type and stationary type.



Main applications of Ceramic Ball Valve:



1. The ball valve mainly transmits strong corrosive material, such as acid, alkali, salt and so on.



2. The ball valve is maily used for transmitting high wear-resisting material, such as silicon powder, coal dust and so on.



►Key properties of zirconia
♦ Max Temperature up to 380℃
♦ High density: 6.09 g/cm3
♦ Low thermal conductivity
♦ Chemical stability, resistance to acid and alkali corrosion
♦ High fracture toughness KIC:8-11 MPa-m1/2
♦ Good electric insulation
♦ Better bearing capacity
♦ Wear resistance
♦ High hardness : 1300 HV5



























►Key properties of pressureless sintered silicon carbide
♦ Max Temperature up to 1650℃
♦ Low density:3.15-3.18 g/cm3
♦ High strength
♦ Low thermal expansion : 4.0 (10-6/℃)
♦ High thermal conductivity:120 W/m°K
♦ High hardness:2800 HV5
♦ High elastic modulus: 410GPa
♦ Superior chemical stability,resistance to acid and alkali corrosion (incld. hydrofluoric acid)

























Silicon Carbide Zirconium Ceramic Ball Valve Zirconia CSQ 0Silicon Carbide Zirconium Ceramic Ball Valve Zirconia CSQ 1
