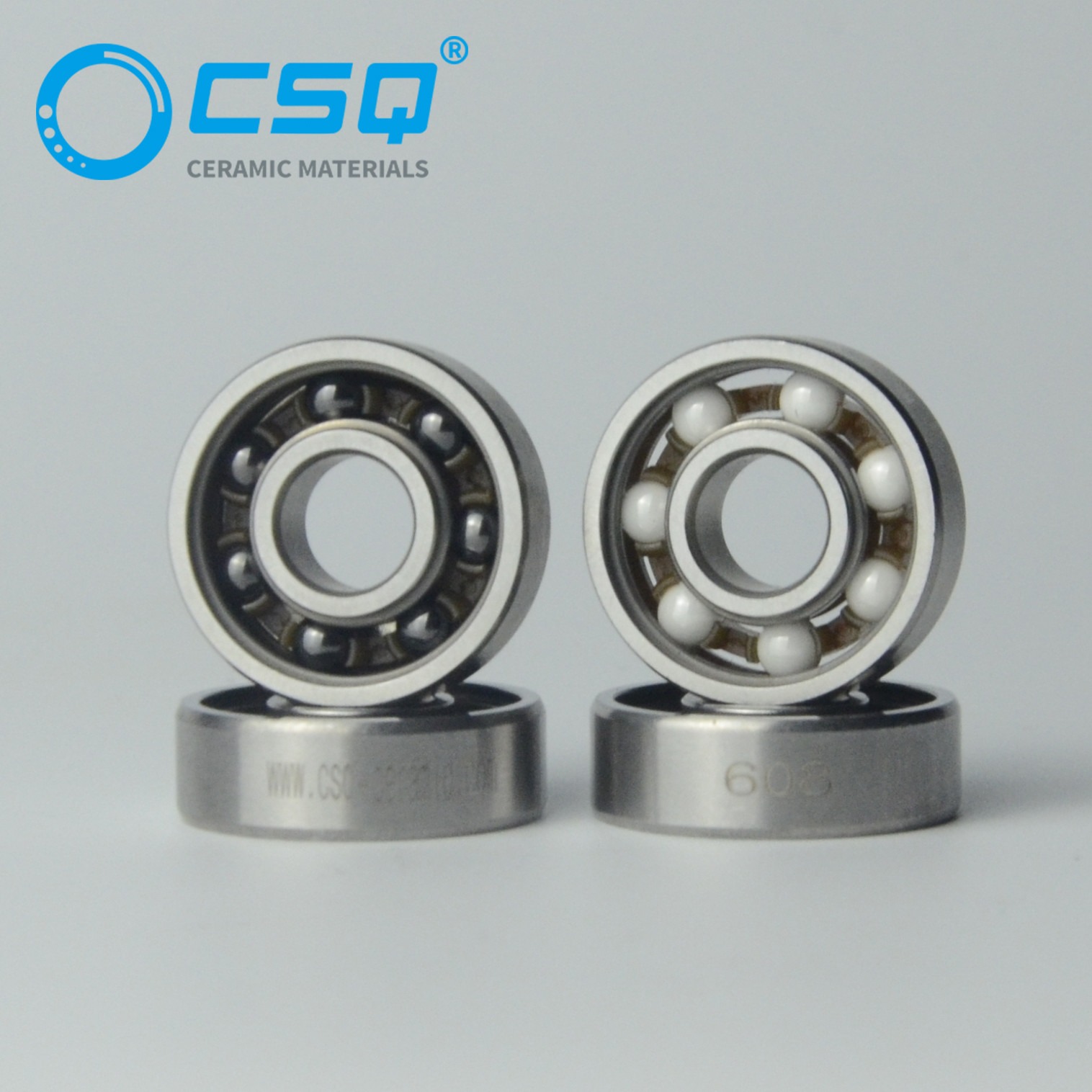

ABEC 3 608z 608zz Ceramic Bearing Hybrid For Skateboard High Speed
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 608 |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik box+carton box |
| Delivery Time | 5 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 5 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 608 Zz Hybrid Ceramic Bearing | Category | Hybrid Ceramic Ball Bearing |
|---|---|---|---|
| Designation | 608 Zz | Precision | P6/ABEC3 |
| Material | GCr15 Races+HIP-Si3N4 Balls+Nylon Cage+Stainless Steel Seal | Ball | Hot Isostatik Pressure Sintered Silicon Nitride Ball Of 3.969mm |
| Diameter | 8×22×7mm | Use | Rollerskate Bearing |
| Highlight | 608z ceramic bearing,608zz high speed bearing,608zz bearing for skateboard |
||
Product Description

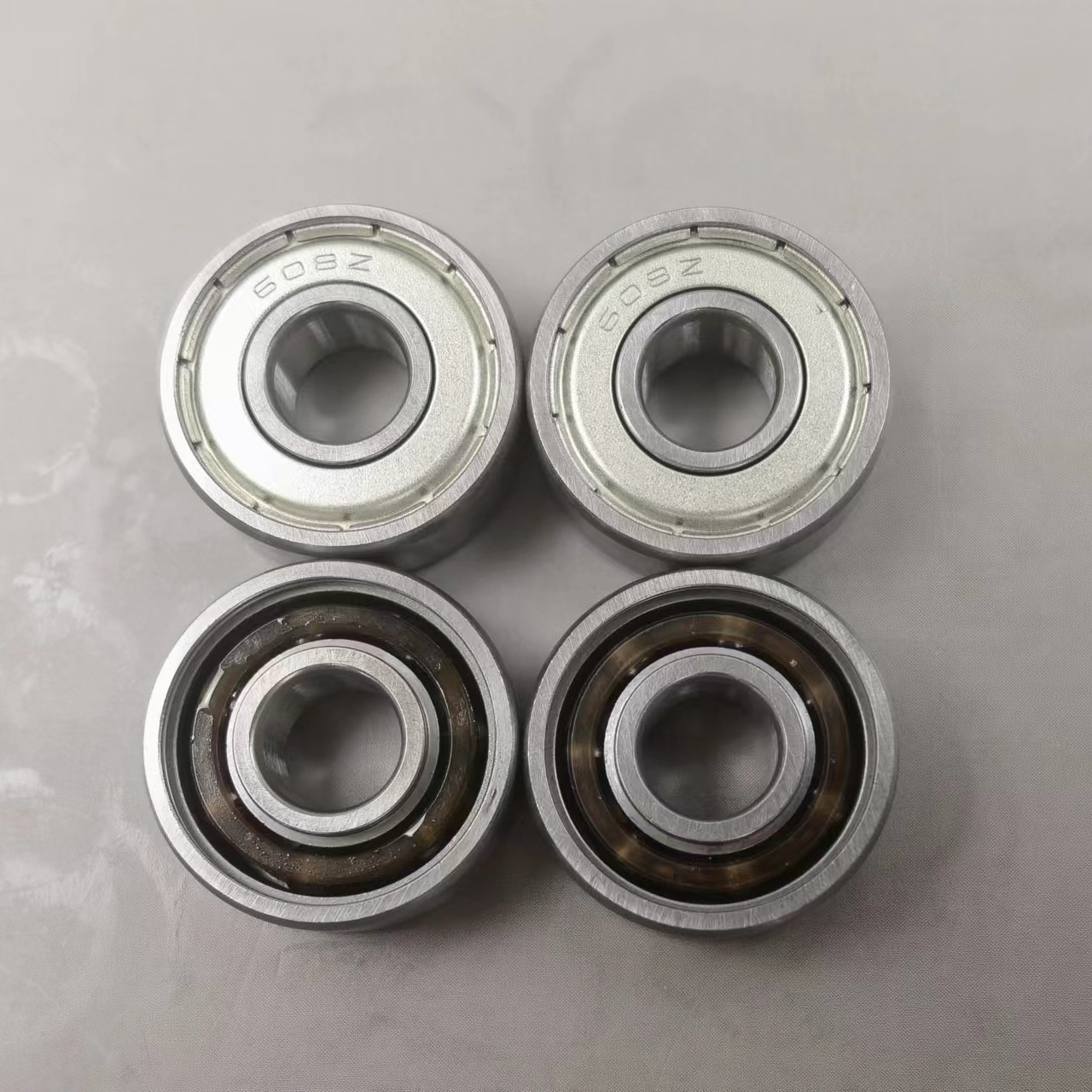

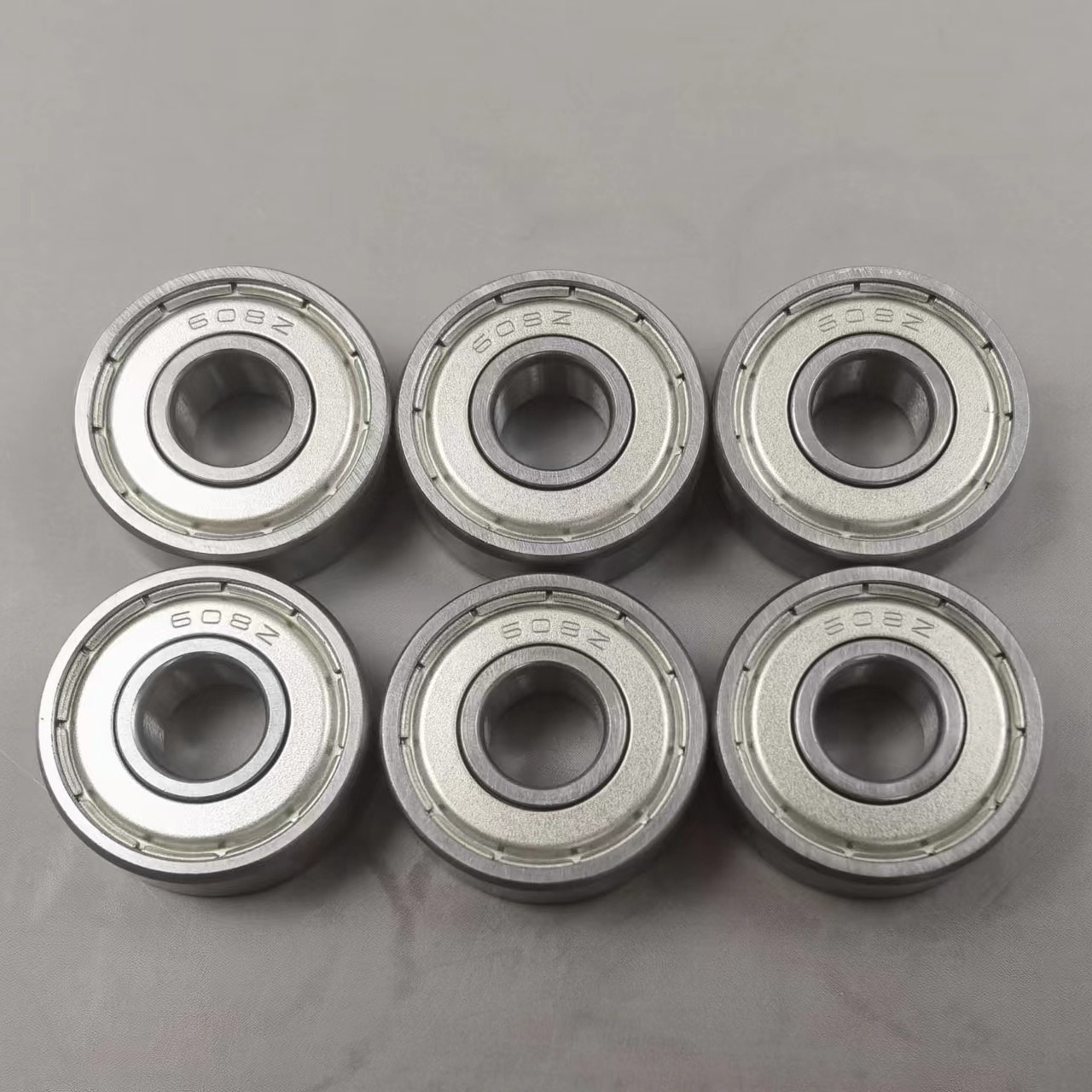

608 zz Hybrid Ceramic Bearing For Rollerskate With High Speed
Description of 608 zz Hybrid Ceramic Bearing:
Races can be chosen among GCr15 bearing steel, M50 steel, 440C stainless steel, high temperature resistant bearing steel, etc., fit with high precision G5 grade silicon nitride balls, which are treated with HIP (Hot Isostatic Pressure) sintering technology. Besides, fit with nylon cage or stainless steel cage and stainless steel single seal.
Performance advantages of 608 zz Hybrid Ceramic Bearing:
The Si3N4 balls have such advantages, such as small volume density, light weight structure, resistance to dry friction, low coefficient of linear expansion, self-lubrication, high fatigue life, wear-resistance, resistance to a variety of strong acid, strong alkali, salt corrosion (in addition to hydrofluoric acid, nitric acid), non-magnetic, non-conductive, high insulation.
Main application of 608 zz Hybrid Ceramic Bearing:
The 608zz bearing adopts the material matching of silicon nitride ball assembled in stainless steel races, which can guarantee the smooth performance of silicon nitride and have the impact resistance of GCr15 steel at the same time. It is high quality and cheap, and is the first choice for speed roller skating bearings.
| ► Key properties of silicon nitride |
| ♦ Max temperature to 1000℃ |
| ♦ High strength over a wide temperature range |
| ♦ High fracture toughness: 6.1 MPa-m1/2 |
| ♦ High hardness: 1580 HV5 |
| ♦ Outstanding wear resistance, both impingement and frictional modes |
| ♦ Good thermal shock resistance |
| ♦ Good chemical stability,resistance to acid and alkali corrosion |
| ♦ Good electric insulation |
Why choose us:
Zhongxing Shiqiang Technology (Tianjin) Co., Ltd. mainly produces ceramic rolling bearings and ceramic balls. At present, our company has a production line for automatic grinding and assembly of ceramic bearings, we do realize the automatic assembly the 608 zz hybrid ceramic bearings by volume production with our ceramic balls.
