6004 6003 6005 6008 608 Full Ceramic Bearings Thrust 51200 51201 51202 51203

  • 6004 6003 6005 6008 608 Full Ceramic Bearings Thrust 51200 51201 51202 51203
  • 6004 6003 6005 6008 608 Full Ceramic Bearings Thrust 51200 51201 51202 51203
Place of Origin China
Brand Name CSQ
Model Number 51200 series (51200-51218)
Minimum Order Quantity 20 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time Negotiable
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 51200 Series All Ceramic Thrust Bearings Model 51200 Series (51200-51218)
Race Material Si3N4/SSiC/ZrO2 Ball Material Si3N4/SSiC/ZrO2
Cage Material Peek/PTFE/Brass Pacage Foam+cartom Box
Highlight

608 full ceramic bearing

,

ceramic bearings thrust 51200

,

ceramic bearings thrust 51201
Leave a Message
Product Description

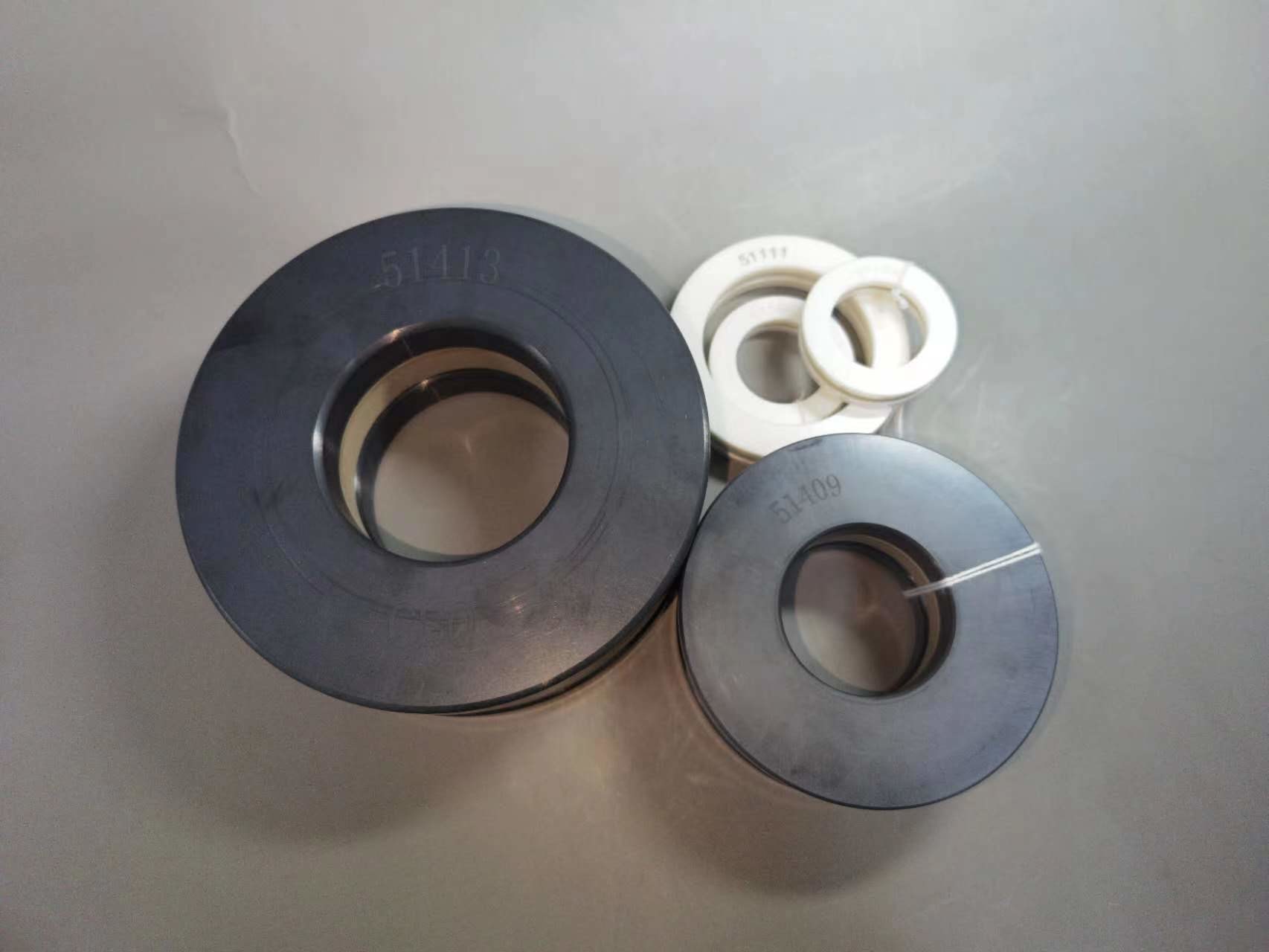

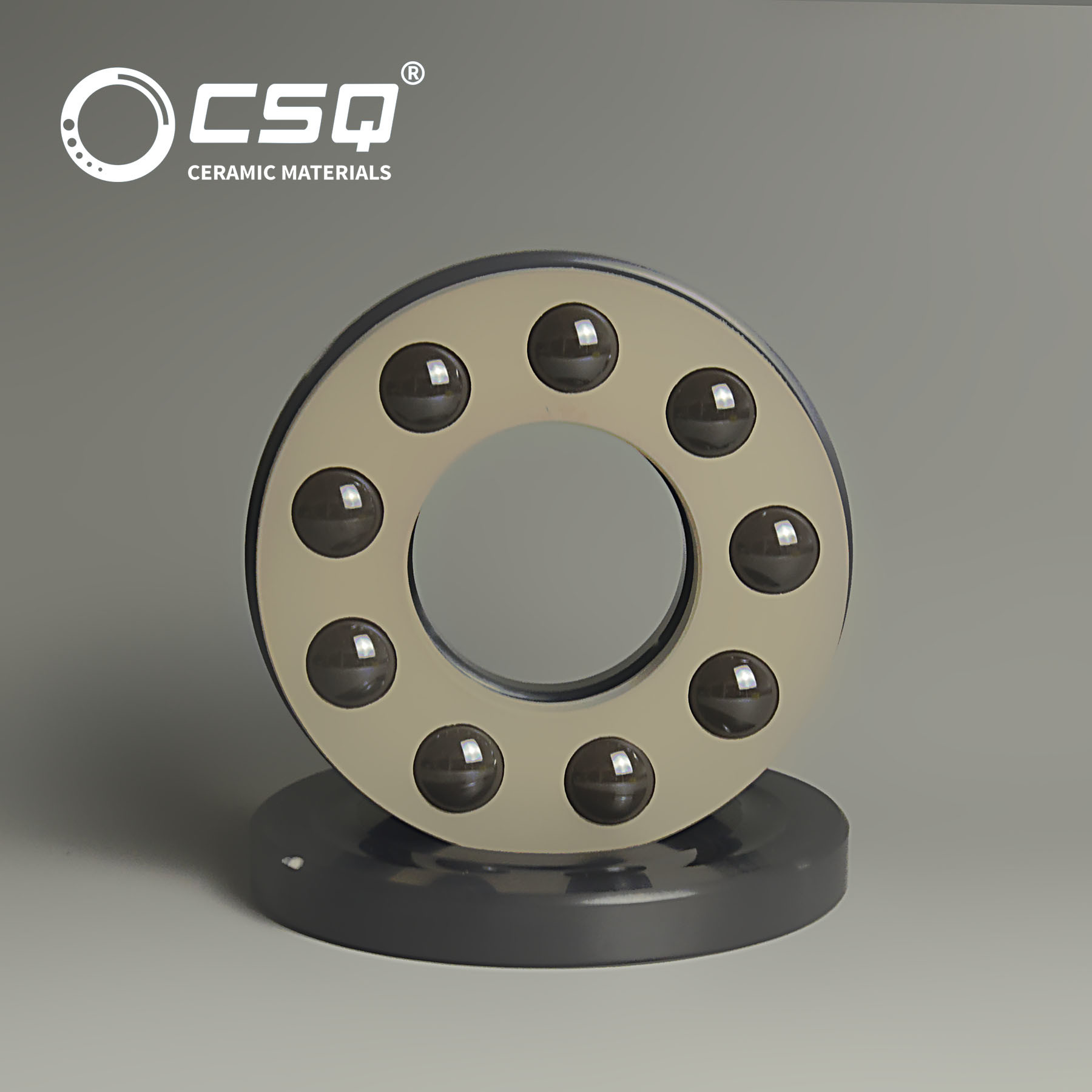

51200 Series All Ceramic Thrust Bearings In Material Of Si3N4/SSiC/ZrO2



Our company has our own material recipe advantage, mature design and research experiences and abundant production experiences of ceramic thrust bearings, our mainly products are in material of silicon nitride, silicon carbide and zirconium oxide these three ceramic materials, we can custom-make ceramic bearings from P6 (ABEC3) precision level to P4 (ABEC7) precision level according to your need. Welcome your inquiry.



Mateial properties data sheet of ceramic material:



Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature

℃
(℉)

1650
(3000)

1000
(1830)

1000
(1830)

380
(716)


Reference data of 51200 series Ceramic single direction thrust ball bearing:



Bearings model

Form size

d (mm)

Form size

D (mm)

Form size

B (mm)

Load
Cr (N)

Load

Cor (N)

Max.Speed

Grease (rpm)

Max. Speed

Oil (rpm)
51200CE 10 26 11 10160 14535 5900 8800
51201CE 12 28 11 10560 16150 5600 8500
51202CE 15 32 12 13280 21080 5100 7600
51203CE 17 35 12 13680 23205 4800 7300
51204CE 20 40 14 17760 31875 4200 6300
51205CE 25 47 15 22240 42925 3700 5600
51206CE 30 52 16 23440 49300 3400 5200
51207CE 35 62 18 31200 66300 2900 4400
51208CE 40 68 19 37600 82725 2700 4100
51209CE 45 73 20 38000 89250 2600 3900
51210CE 50 78 22 38800 95200 2400 3600
51211CE 55 90 25 55600 135150 2100 3100
51212CE 60 95 26 58800 152150 2000 3000
51213CE 65 100 27 60000 160650 1900 2800
51214CE 70 105 27 60800 169150 1800 2800
51215CE 75 110 27 62000 177650 1800 2700
51216CE 80 115 28 62800 186150 1700 2600
51217CE 85 125 31 76400 224400 1600 2400
51218CE 90 135 35 92800 276250 1400 2100



6004 6003 6005 6008 608 Full Ceramic Bearings Thrust 51200 51201 51202 51203 0
