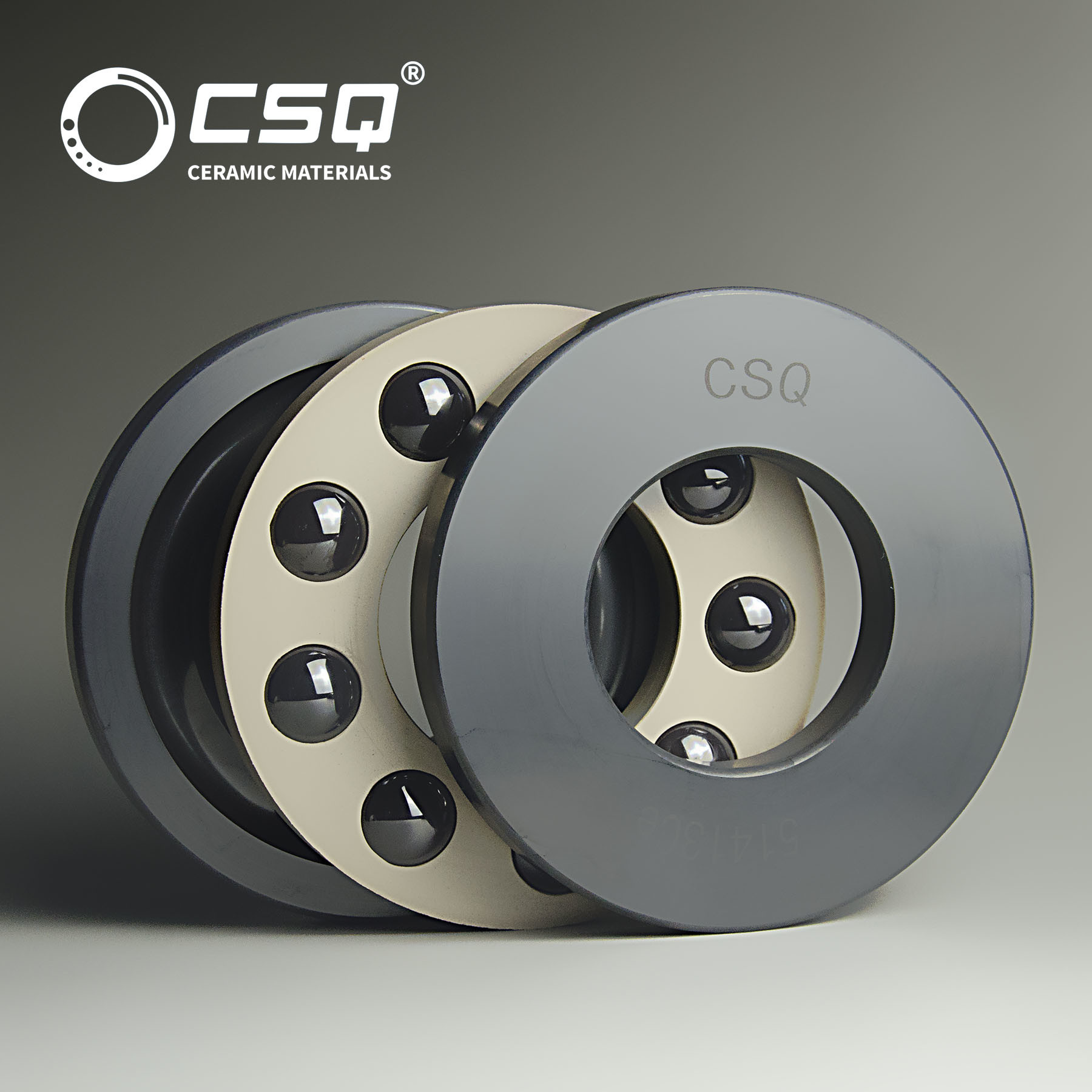

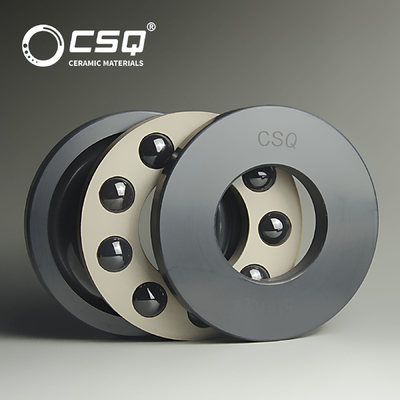

Full Ceramic Thrust Bearings Bandsaw 51100 51101 51102 51103 51104

  • Full Ceramic Thrust Bearings Bandsaw 51100 51101 51102 51103 51104
  • Full Ceramic Thrust Bearings Bandsaw 51100 51101 51102 51103 51104
Place of Origin China
Brand Name CSQ
Model Number 51100 series
Minimum Order Quantity 20 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time Negotiable
Payment Terms T/T
Supply Ability Negotiable

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name 51100 Series All Ceramic Thrust Bearings Model 51100 Series
Race And Balls Si3N4/SSiC/ZrO2 Cage Material Peek/PTFE/Brass
Pacage Foam+cartom Box MOQ 20 Pieces/ One Model
Highlight

full ceramic bearings

,

ceramic bearings thrust

,

ceramic bandsaw thrust bearings
Leave a Message
Product Description



51100 Series All Ceramic Thrust Bearings In Material Of Si3N4/SSiC/ZrO2



Material properties data sheet of ceramic material:



Material Properties Units SSiC HIP-Si3N4 GPS-Si3N4 HIP-ZrO2
Density g/cm3 3.15-3.18 3.27-3.29 3.22-3.27 6.05-6.09
Porosity % 0 0 0 0
Fledural Strength MPa 550 830 689 900
Elastic Modulus GPa 410 310 310 200
Hardness HV5 2800 1580 1450 1300
Fracture Toughness KIC MPa.m1/2 4.6 6.1 5.7 8-11
Maximum Use Temperature

℃
(℉)

1650
(3000)

1000
(1830)

1000
(1830)

380
(716)


Reference data of Ceramic single direction thrust ball bearing:



Bearings model

Form size

d (mm)

Form size

D (mm)

Form size

B (mm)

Load
Cr (N)

Load

Cor (N)

Max.Speed

Grease (rpm)

Max. Speed

Oil (rpm)
51100CE 10 24 9 8000 11900 6800 10000
51101CE 12 26 9 8240 13090 6500 9800
51102CE 15 28 9 8400 14280 6200 9400
51103CE 17 30 9 8640 15470 6000 9100
51104CE 20 35 10 11440 20995 5300 8000
51105CE 25 42 11 15600 31450 4600 6900
51106CE 30 47 11 16320 35700 4300 6500
51107CE 35 52 12 16320 37825 4000 6000
51108CE 40 60 13 21520 53550 3500 5300
51109CE 45 65 14 22240 58650 3300 4900
51110CE 50 70 14 23040 64175 3100 4700
51111CE 55 78 16 28000 79050 2800 4200
51112CE 60 85 17 33200 96050 2600 3900
51113CE 65 90 18 33200 99450 2400 3700
51114CE 70 95 18 34400 107950 2400 3600
51115CE 75 100 19 35600 115600 2200 3400
51116CE 80 105 19 35600 119850 2200 3300
51117CE 85 110 19 36800 127500 2100 3200
51118CE 90 120 22 47600 161500 1900 2900



Why choose us:



In addition to the mass production types (deep groove models), our company can according to the different needs of users, custom-make all ceramic bearings and hybrid ceramic bearings with ceramic balls of all precision levels, customized size range can be: inner diameter from 5 to 120mm, outer diameter from 10 to 200mm. Our ceramic bearing are anti strong acid, strong alkali,salt and other corrosive media erosion, high temperature resistance, wear resistance, light structure, high speed limit, low noise, electricity insulation, the dimension keep stable under high temperature, smaller startup torque, keep working under bad lubricant condition, having longer using lifespan, and common metal incomparable advantages.
