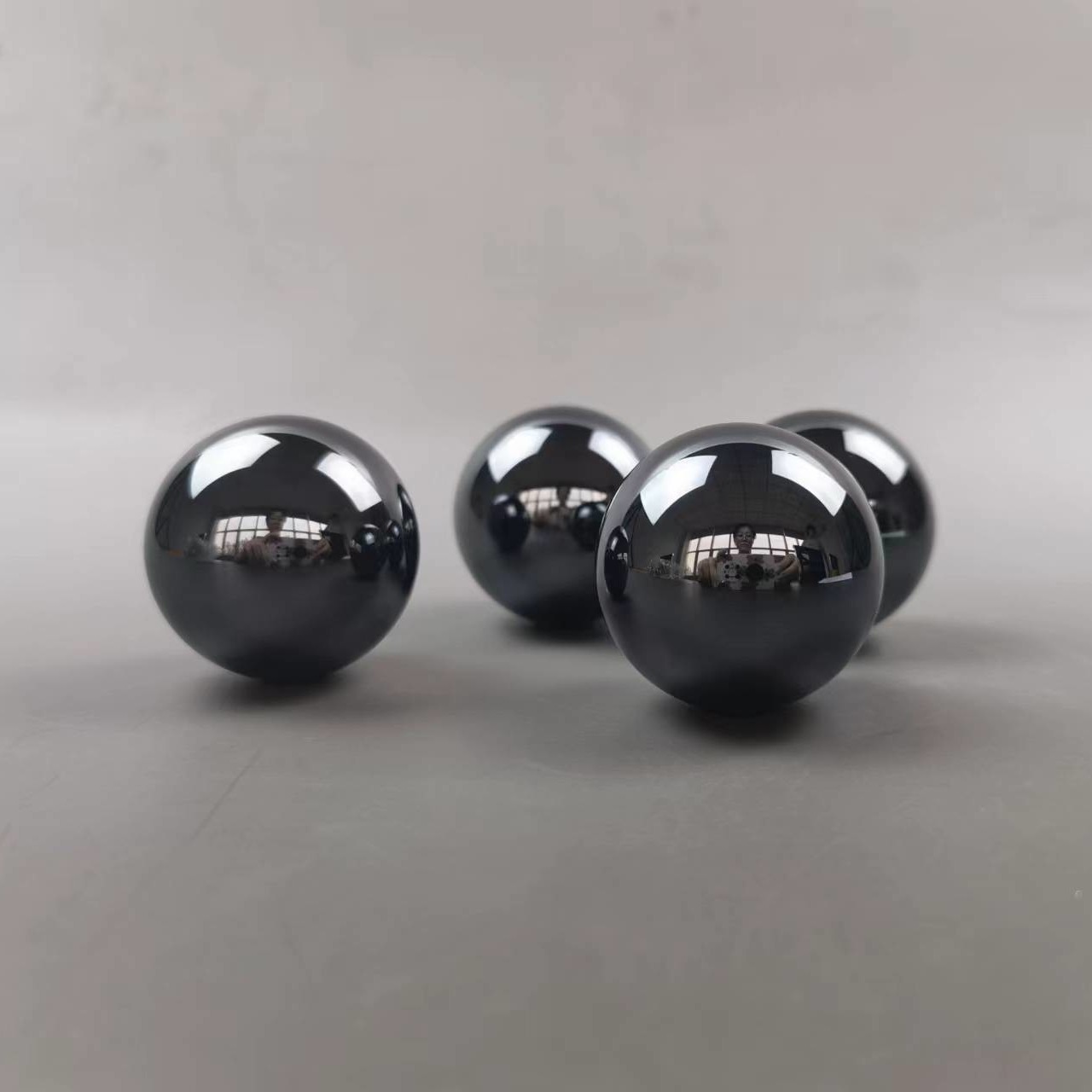

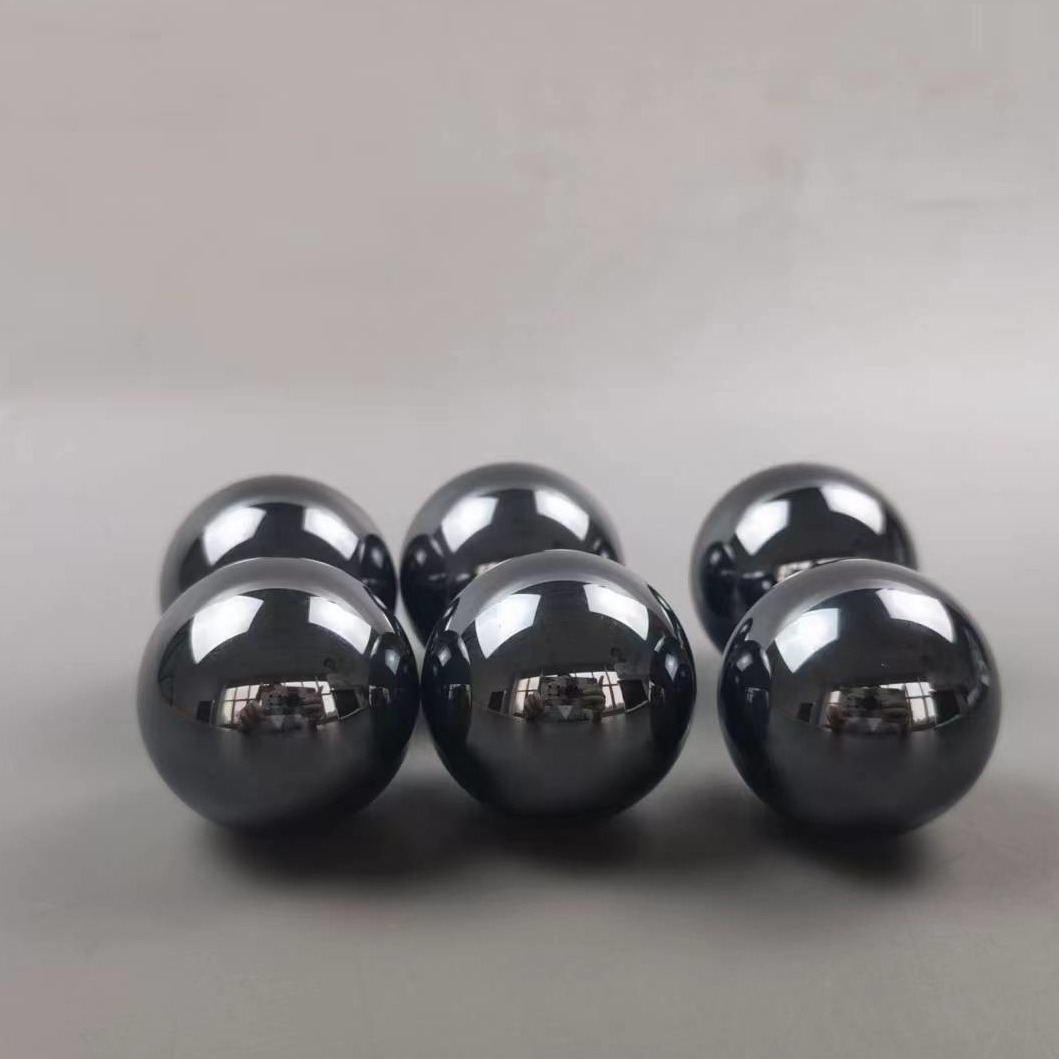

Valve Silicon Carbide Ball Ceramic For Pump 20-60mm

  • Valve Silicon Carbide Ball Ceramic For Pump 20-60mm
  • Valve Silicon Carbide Ball Ceramic For Pump 20-60mm
Place of Origin China
Brand Name CSQ
Model Number Non
Minimum Order Quantity 50 pieces
Price Negotiable
Packaging Details Foam+carton box
Delivery Time 20 work days
Payment Terms T/T
Supply Ability 50 pieces in 20 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Customized Ceramic Valve Ball Material Pressureless Sintered Silicon Carbide
Size Customized Range: 20-60 Mm Precision G20-G40
Technology Pressureless Sintering Technology Use To Plug The Valve Pump
MOQ 50 Pieces Pakage Foam+carton Box
Highlight

Valve Silicon Carbide Balls 60mm

,

Silicon Carbide Ball Ceramics 60mm

,

Silicon Carbide Ceramic Ball 60mm
Leave a Message
Product Description



Customized Ceramic Valve Ball In Material Of Silicon Carbide For Pump



Description of  SSiC Ceramic Valve Ball:



Our silicon carbide balls are made of highly purified, sub-micron silicon carbide material and are sintered by pressureless sintering technology, so the properties of silicon carbide are highly improved. Because of our recipe and manufacture advantages, our valve balls can reach high precision and possess lower leak of liquid. SSiC material has many advantages, like high strength and high hardness (2800 HV5) low density (3.15-3.18 g/cm3) and low thermal expansion ( 4.0 (10-6/℃) ) so its maximum work temperature is 1650℃. Besides, it has superior chemical stability,resistance to fast all kinds of acid and alkali corrosion, even in hydrofluoric acid they can work for a period of time too.



Material Properties Units SSiC
Density g/cm3 3.15-3.18
Porosity % 0
Fledural Strength MPa 550
Elastic Modulus GPa 410
Hardness HV5 2800
Fracture Toughness KIC MPa.m1/2 4.6
Maximum Use Temperature ℃
(℉)		 1650
(3000)



Valve Silicon Carbide Ball Ceramic For Pump 20-60mm 0
