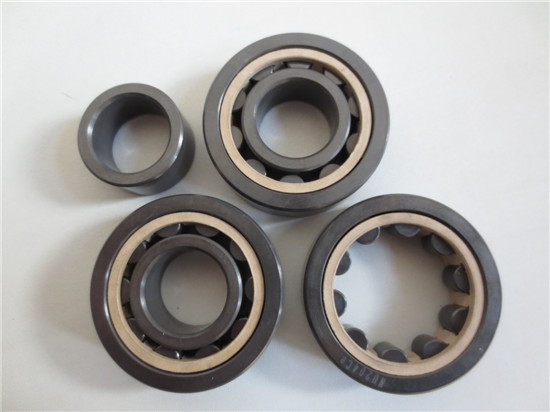

All Ceramic Roller Bearings NU 310 Si3N4 Races Rollers PEEK Cage

  • All Ceramic Roller Bearings NU 310 Si3N4 Races Rollers PEEK Cage
  • All Ceramic Roller Bearings NU 310 Si3N4 Races Rollers PEEK Cage
Place of Origin China
Brand Name CSQ
Model Number NU310
Minimum Order Quantity 50 pcs
Price Negotiable
Packaging Details Foam+cartom box
Delivery Time 30-40 work days
Payment Terms T/T
Supply Ability 50 pcs in 30-40 work days

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name NU310 Ceramic Roller Bearing Category Ceramic Single-row Cylindrical Roller Bearing
Material Si3N4 Races And Rollers+PEEK Cage Form Size 50×110×27mm
Fixing Size 63 (d1 Min.)× 101 (D1 Max.)mm Pacage Foam+cartom Box
Highlight

Ceramic Roller Bearing NU 310

,

all ceramic roller bearings

,

nu 310 bearing
Leave a Message
Product Description

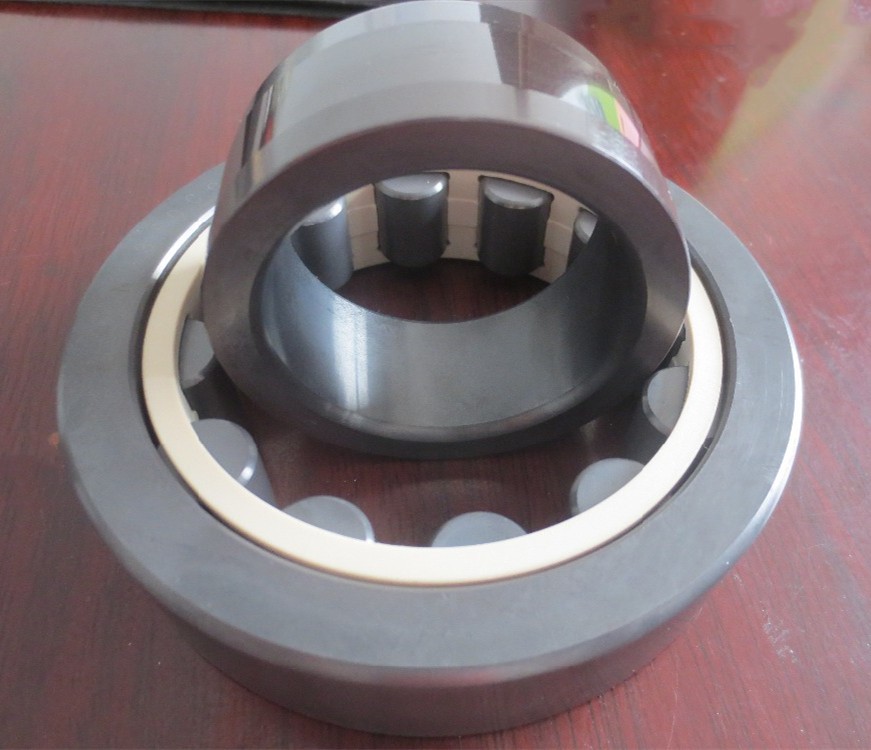

NU310 Ceramic Roller Bearing Of Si3N4 Races And Rollers+PEEK Cage



Description of NU310 (Si3N4 races and rollers+Peek cage):



1. Si3N4 races and rollers: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed by GPS (Gas Pressure) sintering and HIP (Hot Isostatic Pressure) sintering technology.



2. Peek cage: Peek has high temperature resistance ( can work long time at 260 degrees) excellent mechanical properties, good self-lubrication, chemical corrosion resistance, flame retardant, peel resistance, wear resistance, not strong nitric acid, concentrated sulfuric acid, radiation resistance, super mechanical properties can be used in high-end machinery, nuclear engineering and aviation science and technology.



Performance advantages of NU310 (Si3N4 races and rollers+Peek cage):



► Key properties of hot isostatic sintered silicon nitride
♦ Max temperature to 1000℃
♦ High strength over a wide temperature range
♦ High fracture toughness: 6.1 MPa-m1/2
♦ High hardness: 1580 HV5
♦ Outstanding wear resistance, both impingement and frictional modes
♦ Good thermal shock resistance
♦ Good chemical stability,resistance to acid and alkali corrosion
♦ Good electric insulation



Ceramic Bearings Dimension Reference
Bearings Model Load Rating (Ref.) Load Rating (Ref.) Max Speed (Ref.) Max Speed (Ref.)
  Cr(N) Cor(N) Grease (rpm) Oil (rpm)
NU310CE 110000 112000 5000 7800



All Ceramic Roller Bearings NU 310 Si3N4 Races Rollers PEEK Cage 0
