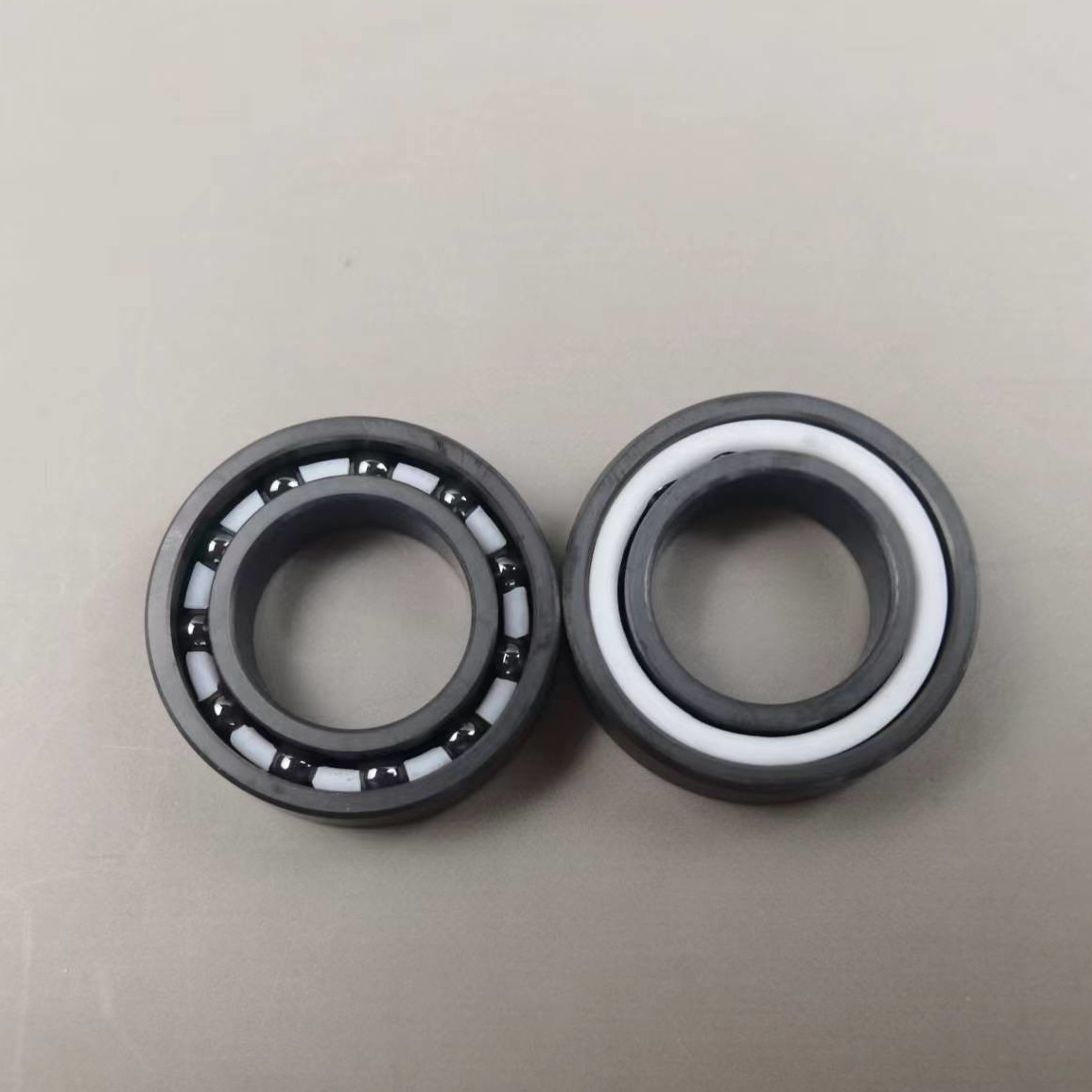

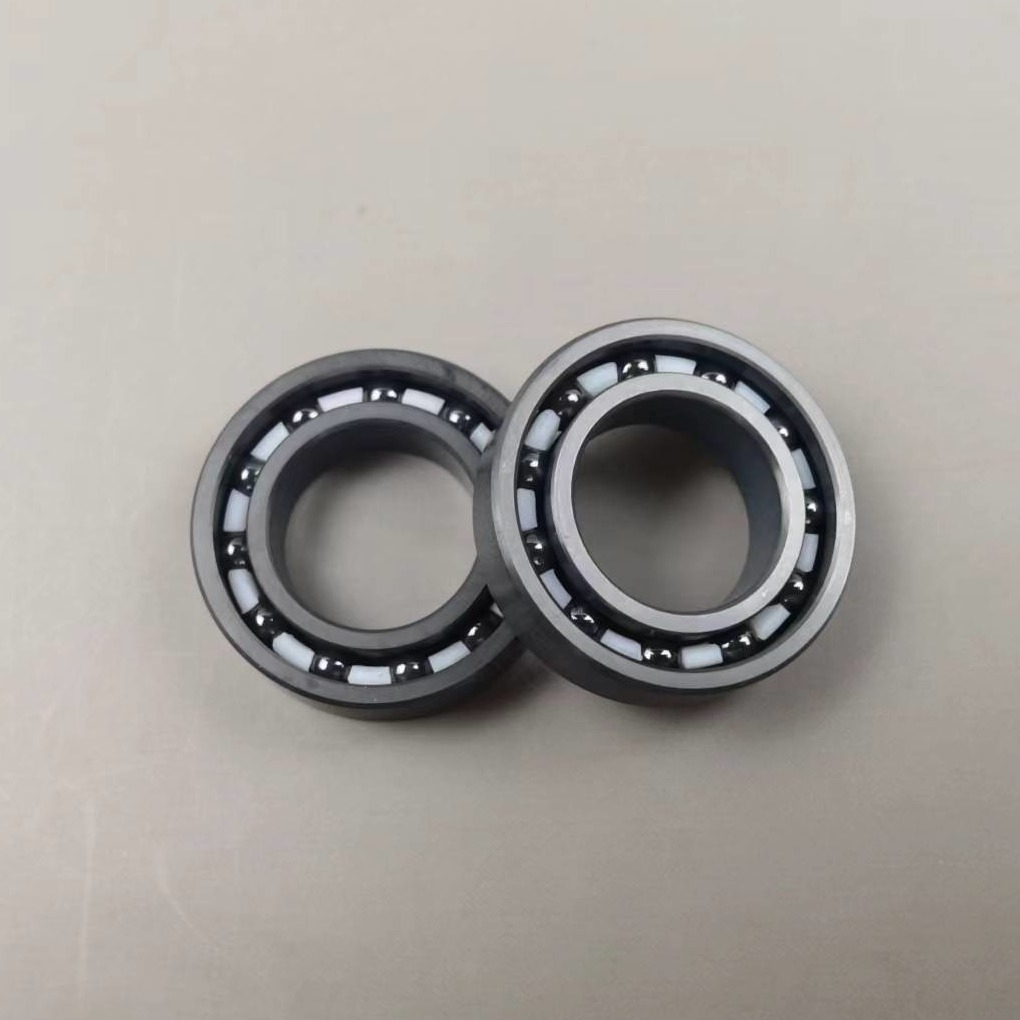

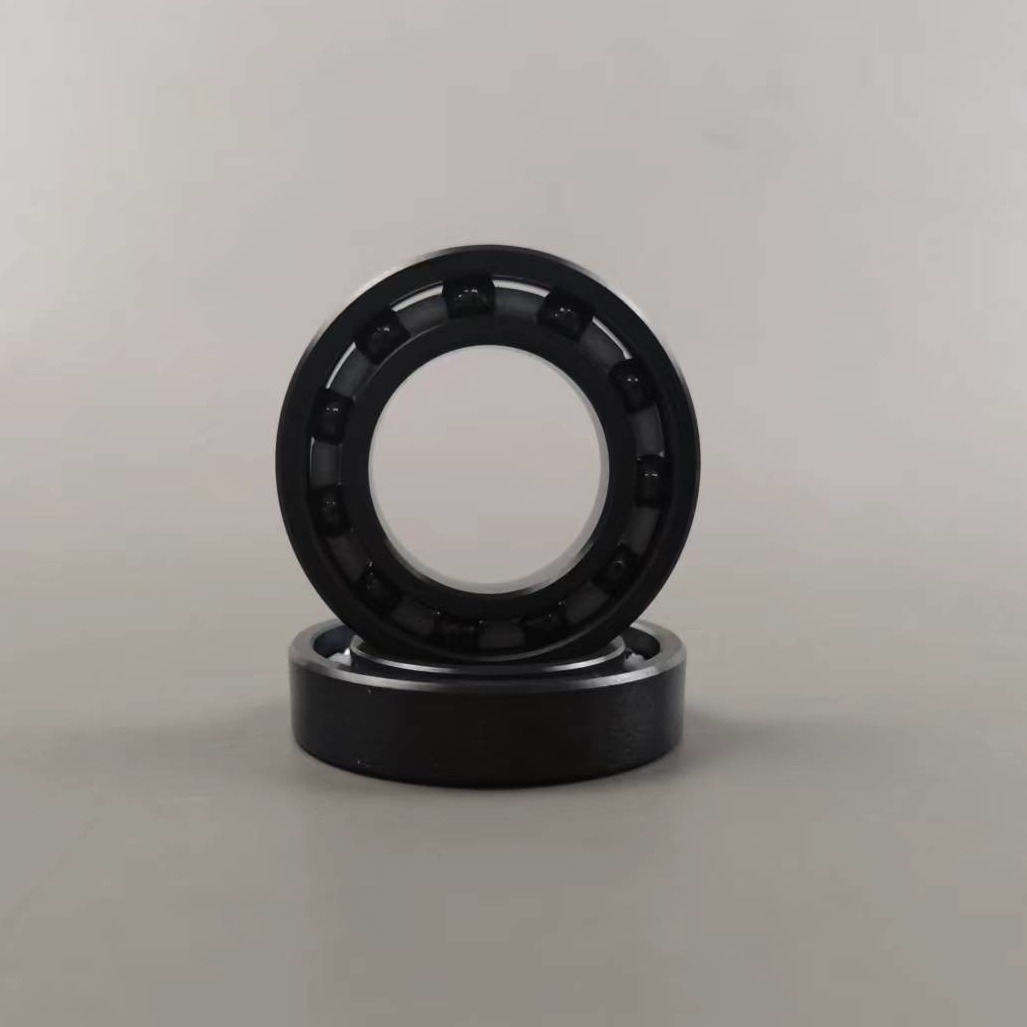

61903-2rs 6903 Ceramic Bearing ABEC 3 Si3N4 Races Balls Cage P6
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 6903(61903CE) |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik bag+foam+carton box |
| Delivery Time | 30-40 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 30-40 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 6903Ce Bearing | Material | Si3N4 Races And Balls+ Cage |
|---|---|---|---|
| Structure | Deep Groove Bearing With Extra Thin Type | Precision | P6/ABEC3 |
| Size | 6903: 17×30×7mm | Ball | Si3N4 Balls Of 3.969mm |
| Pacage | Plastik Bag+foam+carton Box | MOQ | 50 Pieces |
| Highlight | 6903 bearing ceramic,bearing 6903 ceramic,61903-2rs ceramic bearing |
||
Product Description
6903Ce Bearing Of Si3N4 Races And Balls + Cage With P6/ABEC3 Precision
Description of 6903Ce Bearing:
1. Si3N4 races and balls: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed after HIP (Hot Isostatic Pressure) sintering technology. So the porosity, wear resistance, crushing value and fatigue contact life have been greatly improved.
2. cage: has resistance to many kinds of acid and alkali and high temperature resistance and its melting point is 327℃,so it can work in many situation as bearing cage.
Application of 6903Ce Bearing:
Silicon nitride bearings are suitable for high-speed, alternating load environment, so are usually use ashigh-speed spindle, electric spindle, CNC machine tool and motorized spindle bearings.
| Ceramic | Bearings | Dimension | Reference | |
| Bearings Model | Load Rating (Ref.) | Load Rating (Ref.) | Max Speed (Ref.) | Max Speed (Ref.) |
| Cr(N) | Cor(N) | Grease (rpm) | Oil (rpm) | |
| 61903CE | 3450 | 2550 | 24000 | 31900 |
| ► Key properties of hot isostatic sintered silicon nitride |
| ♦ Max temperature to 1000℃ |
| ♦ High strength over a wide temperature range |
| ♦ High fracture toughness: 6.1 MPa-m1/2 |
| ♦ High hardness: 1580 HV5 |
| ♦ Outstanding wear resistance, both impingement and frictional modes |
| ♦ Good thermal shock resistance |
| ♦ Good chemical stability,resistance to acid and alkali corrosion |
| ♦ Good electric insulation |
