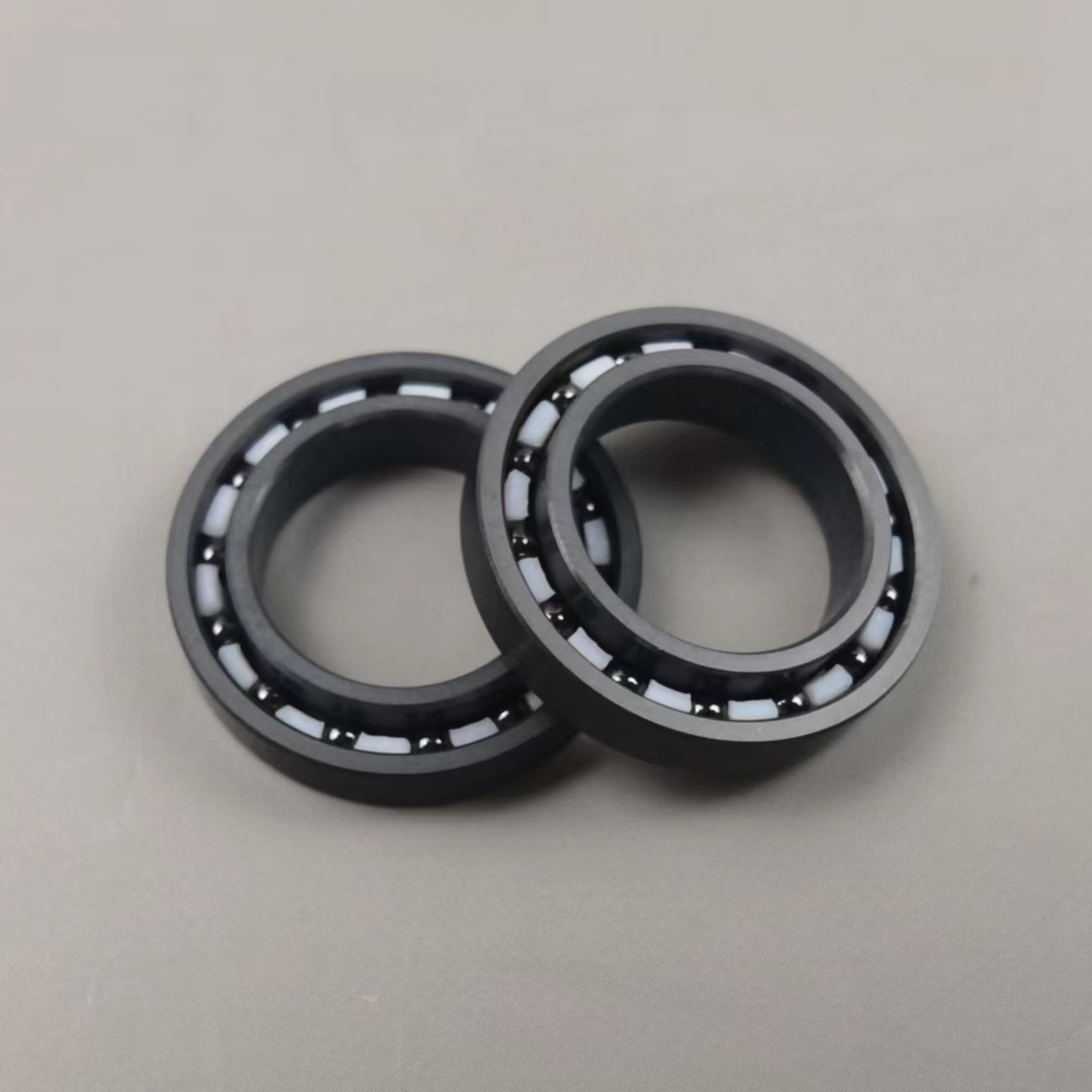

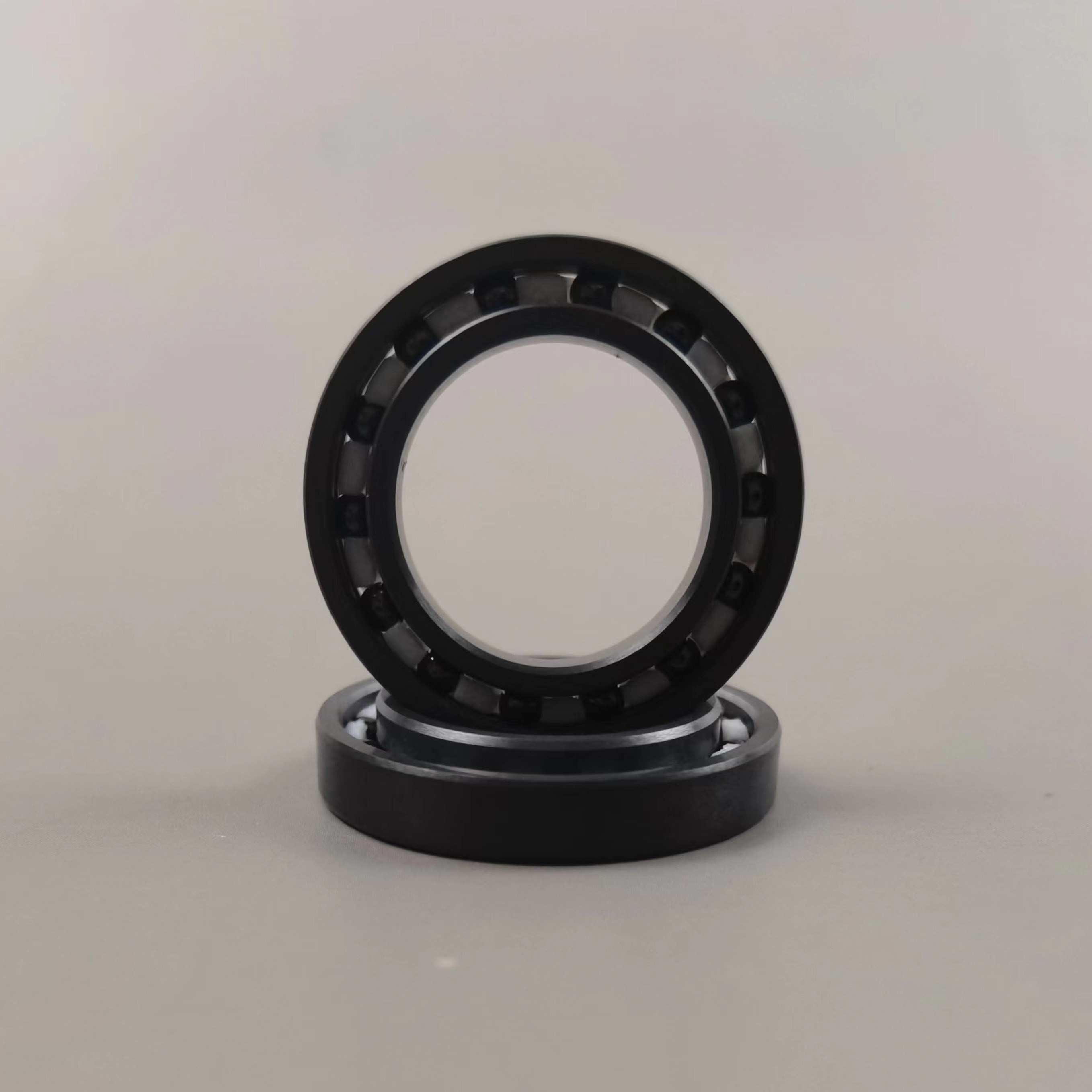

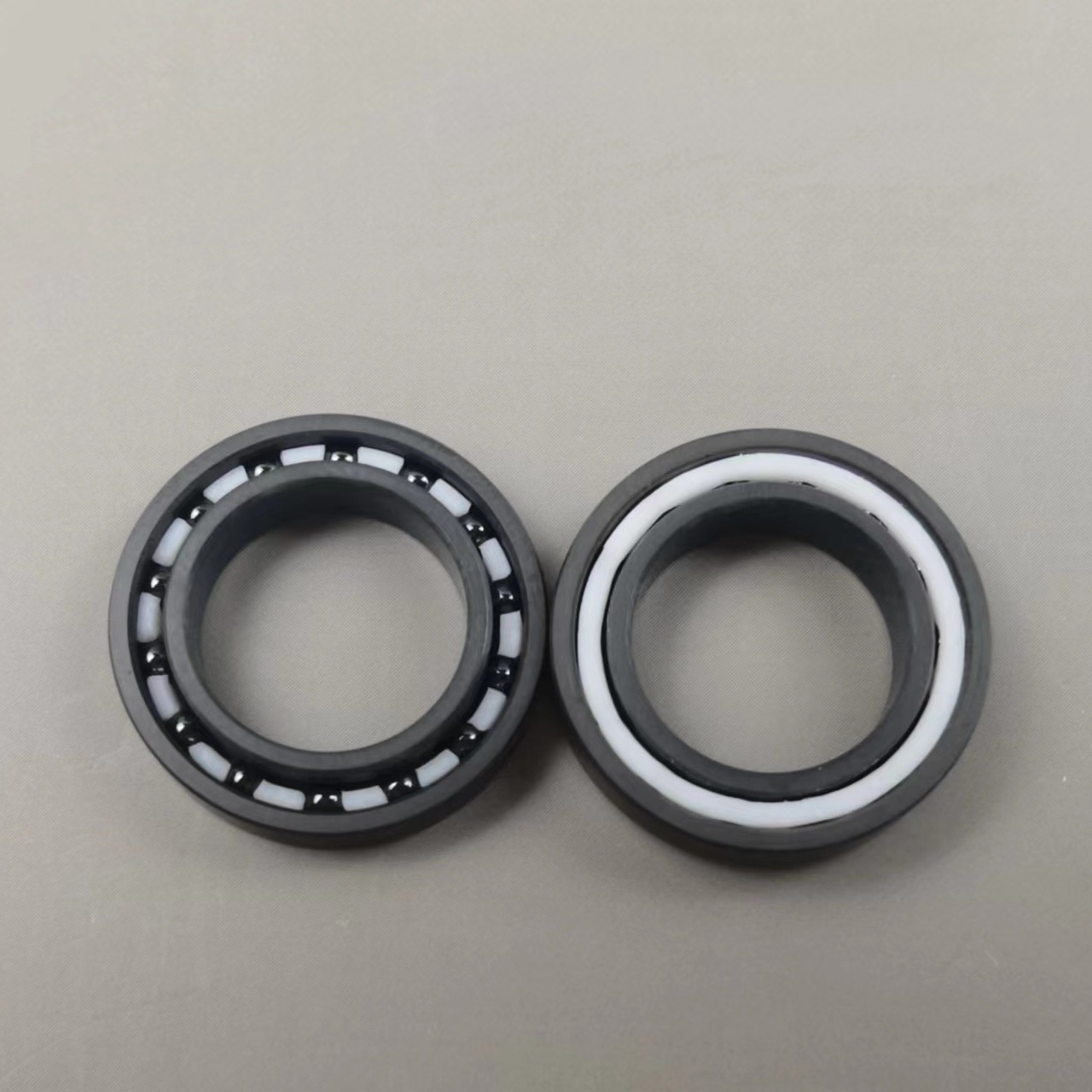

6802 Silicon Nitride Ball Bearing 15x24x5mm ABEC 3
| Place of Origin | China |
|---|---|
| Brand Name | CSQ |
| Model Number | 6802(61802CE) |
| Minimum Order Quantity | 50 pcs |
| Price | Negotiable |
| Packaging Details | Plastik bag+foam+carton box |
| Delivery Time | 30-40 work days |
| Payment Terms | T/T |
| Supply Ability | 50 pcs in 30-40 work days |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | 6802 All-Si3N4 Bearing | Material | HIP Silicon Nitride Races And Balls+ Cage |
|---|---|---|---|
| Precision | P6/ABEC3 | Size | 6802: 15×24×5mm |
| Use | High Speed Spindle Bearing | Pacage | Plastik Bag+foam+carton Box |
| MOQ | 50 Pieces | Delivery Time | 30-40 Work Days |
| Highlight | CSQ 6802 Silicon Nitride Ball Bearing,CSQ Silicon Nitride Ball Bearing 15x24x5mm 3,CSQ 6802 ceramic |
||
Product Description
6802 All-Si3N4 Bearing Of HIP-Si3N4 races and balls + cage With P6/ABEC3 Precision
Description of 6802 All-Si3N4 Bearing:
1. Si3N4 races and balls: Are made of highly purified, submicron silicon nitride powder with an alpha phase of more than 92%, and is processed after HIP (Hot Isostatic Pressure) sintering technology. So the porosity, wear resistance, crushing value and fatigue contact life have been greatly improved.
2. cage: has resistance to many kinds of acid and alkali and high temperature resistance, is a nice material for ceramic bearings' cage.
Performance advantages of 6802 All-Si3N4 Bearing:
Ceamic bearing in material of silicon nitride has a small volume density, light weight structure, resistance to dry friction self-lubrication, high fatigue life. They have high hardness 1580(HV5), are wear-resistant, resistant to a variety of strong acid, strong alkali, salt corrosion (in addition to hydrofluoric acid, nitric acid), non-magnetic, non-conductive, can work at about 1000 ℃, its service life is far beyond the same metal bearings several times to dozens of times, etc.
Application of 6802 All-Si3N4 Bearing:
Silicon nitride bearings are suitable for high-speed, alternating load environment, so are usually use as high-speed spindle, electric spindle, CNC machine tool and motorized spindle bearings.
| ► Key properties of hot isostatic sintered silicon nitride |
| ♦ Max temperature to 1000℃ |
| ♦ High strength over a wide temperature range |
| ♦ High fracture toughness: 6.1 MPa-m1/2 |
| ♦ High hardness: 1580 HV5 |
| ♦ Outstanding wear resistance, both impingement and frictional modes |
| ♦ Good thermal shock resistance |
| ♦ Good chemical stability,resistance to acid and alkali corrosion |
| ♦ Good electric insulation |
| Ceramic | Bearings | Dimension | Reference | |
| Bearings Model | Load Rating (Ref.) | Load Rating (Ref.) | Max Speed (Ref.) | Max Speed (Ref.) |
| Cr(N) | Cor(N) | Grease (rpm) | Oil (rpm) | |
| 61802CE | 1560 | 1260 | 28000 | 37400 |
